China Wire Rope Sling manufacturer

Ungalvanised Galvanized Wire Rope Customized Wear Resistance High - End Use

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 32X7 (6/1)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelSurface:Galvanized
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description





32X7 (6/1) - Rotation Resistant Galvanized Steel Wire Rope for Main hoist rope



Product Details



32X7 is available in both galvanised and ungalvanised finish with either ordinary or langs lay. The construction family includes: 34X7, 35X7 and 37X7.

Depending upon your requirement for higher breaking load or better wear characteristics, these wire ropes are available in different finishes and lubrications, as well as being available with plastic impregnated.





Applications



  • Offshore crane rope
  • Deck crane rope
  • Pillar crane rope
  • Whip hoist rope
  • Main hoist rope
  • Crane rope



Rotation-resistant rope

multi-strand rope (superseded)

non-rotating rope (superseded)

stranded rope designed to generate reduced levels of torque and rotation when loaded
Note 1 to entry: Rotation-resistant ropes generally comprise an assembly of at least two layers of strands laid helically around a centre, the direction of lay of the outer strands being opposite to that of the underlying layer.
Note 2 to entry: Ropes having three or four strands can also be designed to exhibit rotational-resistant properties.



Multi strand non rotating wire rope is widely used in shaft lift, shaft channel, shaft balance, lifting machinery, port handling and other fields. Although many domestic metal products enterprises have the ability to produce, the quality of products varies greatly. The production of multi strand non rotating wire rope is very simple, but in fact, the technical requirements of multi strand non rotating wire rope production are very high. In order to meet the requirements of high-end use, it is necessary to find the best process route and the optimum configuration of the equipment, and organize the production in a reasonable and orderly way.

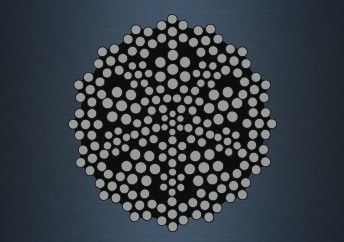

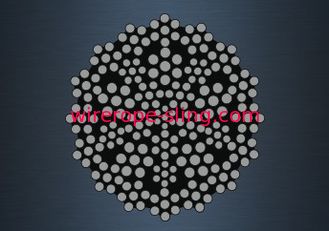

Cross Section Show

.

 Ungalvanised Galvanized Wire Rope Customized Wear Resistance High - End Use 0






Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
1960 Mpa
[mm] [kg/m] [kN] [Kg]
8
0.291 45.16 4,606
9
0.368 57.15 5,829
10
0.454 70.56 7,197
11
0.549 85.38 8,708
12
0.654 101.61 10,363
13
0.767 119.25 12,163
14
0.890 138.30 14,106
15
1.022 158.76 16,193
16
1.162 180.63 18,424
18
1.471 228.61 23,318
19
1.639 254.72 25,981
20
1.816 282.24 28,788
22
2.197 341.51 34,834
24
2.615 406.43 41,455
