Synthetic Fiber Core Wire Rope , Galvanized Steel Wire 1960MPA Tensile Strength

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 5xK26WS
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelSurface:Galvanized
Tensile Strength:1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description



4xK26WS - SCF Galvanized and Compacted Steel Wire Rope for hanging basket



Product Details



5xK26WS - SCF is a unique construction of steel wire rope, designed for use with the majority of pulling machines, this construction has a synthetic fiber core and is of a compacted design to ensure smother running through a pulling machine and around pullys.

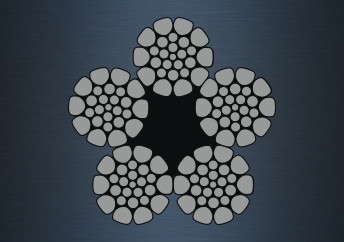

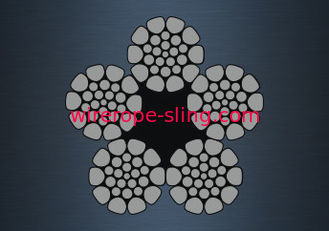

Cross Section Show





Synthetic Fiber Core Wire Rope , Galvanized Steel Wire 1960MPA Tensile Strength 0





The hanging basket is the construction machinery for aerial work of building engineering, which acts on curtain wall installation and external wall cleaning. The hanging basket is a new type of high altitude operation equipment which can replace the traditional scaffolding, which can reduce labor intensity, improve work efficiency and be able to reuse. The use of architectural hanging basket has gradually become a trend. It has been widely recognized in the construction of exterior wall, curtain wall installation, insulation construction and maintenance and cleaning of exterior wall, and can also be used in large tanks, bridges and dams. The use of this product can be exempt from scaffolding. The construction cost is reduced, the construction cost is 28% of the traditional scaffold, and the work efficiency is greatly improved. The hanging basket is flexible in operation, easy to shift, convenient and practical, safe and reliable.



Synthetic Fiber Core Wire Rope , Galvanized Steel Wire 1960MPA Tensile Strength 1



Introduction



(1) suspension platform
The suspended platform is the working place of the construction personnel. It is composed of four parts of the high and low railings, the basket bottom and the hoisting machine mounting rack.
(two) hoist
The hoist is the power unit of the suspended platform, and adopts the electric climbing structure.
The hoist is driven by an electromagnetic brake three-phase asynchronous motor, driven by a worm gear and a pair of gears, and driven by a wire rope conveyor to make the elevator follow.
The working wire rope moves up and down to drive the suspension platform up or down.
(three) security lock
The safety lock is a safety protection device for the suspended platform. When the working wire rope suddenly breaks or the suspension platform tilts to a certain angle, it can automatically protect itself.
Fast locking the safety wire rope to ensure that the suspension platform does not fall or continue to tilt.
(four) suspension structure.
The hanging mechanism is a device suspended on the upper part of a building and suspended by a wire rope.
(five) electric control box
The electrical control box is used to control the movement of the suspended platform. The main components are installed on an insulating board, universal steering switch, power indicator,
Start button and emergency stop button device on box board door.



Breaking Loads - 1960 N/mm2
Rope
[⌀mm]
Out. Wire
[⌀mm]
Minimum Breaking Force
[kgf]
Length Mass
[Kg/M]
8.40
0.67 5.250 0.250
9.50 0.75 6.809 0.340
10.20 0.83 8.461 0.390
11.50
0.93 9.531 0.480
14.00 1.15 16.004 0.740
16.30*
1.15 19.776 1.010
*5 x K31WS - SFC
