6x19 Filler Galvanized Braided Steel Cable High Toughness For Drill Lines

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6x19 (12/6+6F/1)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelSurface:Galvanized
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description



6x19 (12/6+6F/1) Filler Fiber / IWR Core Galvanized Steel Wire Rope for Drill lines



Product Details



6x19 filler (often referred to as 6x25) is available with both FC (fibre core) and IWRC (independent wire rope core). With a fibre core, and due to the smaller wires used within the construction, 6x19 filler will generally achieve a superior fatigue life to the other 6x19 constructions. 6x19 filler wire rope has been a very popular construction for producing wire rope slings from 1 tonne safe working load up to 5 tonnes. One very good example is the high volume use of this construction in the North Sea Oil industry where it is used for the production of pipeslings.





Cross Section Show

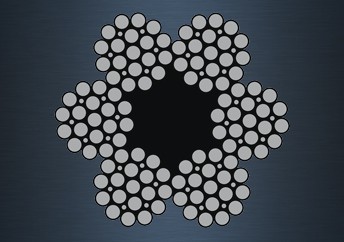

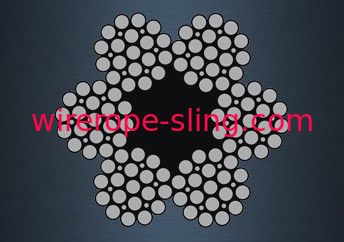

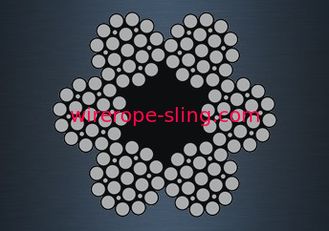

6x19 (12/6+6F/1) Filler - FC Wire Rope



6x19 Filler Galvanized Braided Steel Cable High Toughness For Drill Lines 0

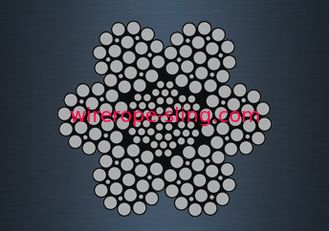

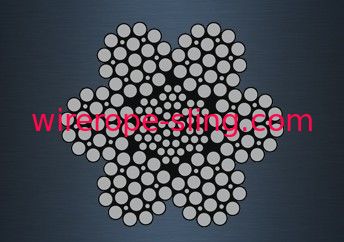

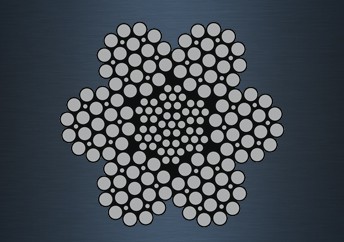

6x19 (12/6+6F/1) Filler - IWRC Wire Rope



6x19 Filler Galvanized Braided Steel Cable High Toughness For Drill Lines 1





Applications



  • General engineering applications
  • Drill lines / drilling ropes
  • Elevator rope / lift rope
  • Wire rope slings
  • Derricking ropes
  • Pendant ropes
  • Crane rope
  • Hoist rope
  • Sand, coring and swabbing lines
  • Trawl wraps / Pelagic sweeps
  • Ground cables / Ground haulage
  • Oil well / Oil field
  • Excavator rope / Scraper rope
  • Fishing rope
  • Drag ropes



How to choose a wire rope for a crane?



When the wire rope deconvolution, we must pay attention to avoid making the new rope knot or produce torsion, when cutting wire rope, we must tighten the rope break, avoid the rope strands scattered.
In the use of the crane wire rope, we should pay attention to the sudden shock pulling force. To check the connection position of the wire rope at the end of the wire rope, the connection strength of the wire rope card must exceed 90% of the broken tension of the wire rope.
In general, the number of wire broken wire in the distance of the reused wire rope reaches 1/10 of the total, then it should be discarded.







Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
1770 Mpa 1960 Mpa
[mm] [kg/m] [kN] [Kg] [kN] [Kg]
14 0.784 123.5 12,597 136.8 13,949
16 1.024 161.3 16,453 178.6 18,219
18 1.296 204.2 20,824 226.1 23,059
20 1.6 252 25,708 279.1 28,468
22 1.936 305 31,107 337.7 34,447
24 2.304 362.9 37,020 401.9 40,994
26 2.704 426 43,448 471.7 48,111
28 3.136 494 50,389 547 55,798
30 3.6 567.1 57,845 628 64,054
32 4.096 645.2 65,814 714.5 72,879
34 4.624 728.4 74,298 806.6 82,274
36 5.184 816.6 83,296 904.3 92,238
38 5.776 909.9 92,809 1007.6 102,771
40 6.4 1008.2 102,835 1116.4 113,874
42 7.056 1111.5 113,376 1230.8 125,546
44 7.744 1219.9 124,431 1350.9 137,788
46 8.464 1333.3 136,000 1476.5 150,598
48 9.216 1451.8 148,083 1607.6 163,979
