Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE, CCS, Lloyd’s, ABS,DNV |
| Model Number: | 35X7 (6/1) |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1000mtrs |
| Price: | USD1200 per Ton |
| Packaging Details: | Wooden Reel or as request |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons monthly |
|
Detail Information |
|||
| Lay: | RHOL,LHOL,RHLL,LHLL | Surface: | Galvanized |
|---|---|---|---|
| Tensile Strength: | 1570,1670,1770,1870,1960MPA | Length: | 500mtrs/1000mtrs/2000mtrs Available |
| Packing: | Wooden Reel,Steel Reel | Material: | Steel |
| Standard: | ASTM, BS, GB, JIS | Alloy Or Not: | Non-alloy |
| High Light: |
galvanized cable wire,galvanized steel wire rope |
||
Product Description

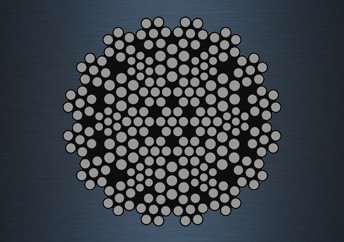

35X7 is available in both galvanised and ungalvanised finish with either ordinary or langs lay. The construction family includes 32X7, 34X7 and 37X7.
Depending upon your requirement for higher breaking load or better wear characteristics, these wire ropes are available in different finishes and lubrications as well as being available with plastic impregnated or in compacted constructions.
The proper maintenance of crane wire rope can prolong its service life. How should we scientifically maintain it?
First of all, in the process of use, we can not allow its overloading state to be put into use, and it can not make the product change sharply in a short time, not to be able to speed up and down speed, to avoid some impact and impact behavior. The life length of the product is very closely related to the method of self use. We must use it in the process of use, and do not have the action of drag and throw.
Secondly, if the grease on the wire rope is too much, we should wipe it up. And we put it in a relatively clean and dry place after we have set it up, not to overlap each other, nor to make it sprain. In the process of using the wire rope, if the oil droplets are found on the surface of the product, it shows that the strength of the product is too large and needs to be replaced in time.
.
| Breaking Loads | |||||
|---|---|---|---|---|---|
| Nominal Diameter | Approximate Mass | Minimum Breaking Loads | |||
| 1960 Mpa | 2160 Mpa | ||||
| [mm] | [kg/m] | [kN] | [Kg] | [kN] | [Kg] |
| 8 | 0,291 | 45.20 | 4,610 | 48.40 | 4,940 |
| 9 | 0.368 | 57.20 | 5,830 | 61.20 | 6,240 |
| 10 | 0.454 | 70.60 | 7,200 | 75.60 | 7,710 |
| 11 | 0.549 | 85.40 | 8,710 | 91.50 | 9,930 |
|
12
|
0.654 | 101.61 | 10,363 | 109.00 | 11,100 |
|
13
|
0.767 | 119.25 | 12,163 | 128.00 | 13,100 |
|
14
|
0.890 | 138.30 | 14,106 | 148.00 | 15,100 |
|
16
|
1.162 | 180.63 | 18,424 | 194.00 | 19,800 |
|
18
|
1.471 | 228.61 | 23,318 | 245.00 | 25,000 |
|
20
|
1.816 | 282.24 | 28,788 | 302.00 | 30,800 |
|
22
|
2.197 | 341.51 | 34,834 | 366.00 | 37,300 |
|
24
|
2.615 | 406.43 | 41,455 | 435.00 | 44,400 |
|
26
|
3.069 | 476.99 | 48,652 | 511.00 | 52,100 |
|
28
|
3.559 | 553.19 | 56,425 | 593.00 | 60,500 |
|
32
|
4.650 | 723.00 | 73,700 | 774.00 | 79,000 |
| 36 | 5.880 | 914.00 | 93,200 | 980.00 | 100,000 |
| 38 | 6.560 | 1,020.00 | 104,000 | 1,090.00 | 111,000 |
| 40 | 7,260 | 1,130.00 | 115,000 | 1,210.00 | 123,000 |
