|Place of Origin:||China|
|Certification:||CE / ISO 9001 : 2008|
Payment & Shipping Terms:
|Minimum Order Quantity:||1mtrs|

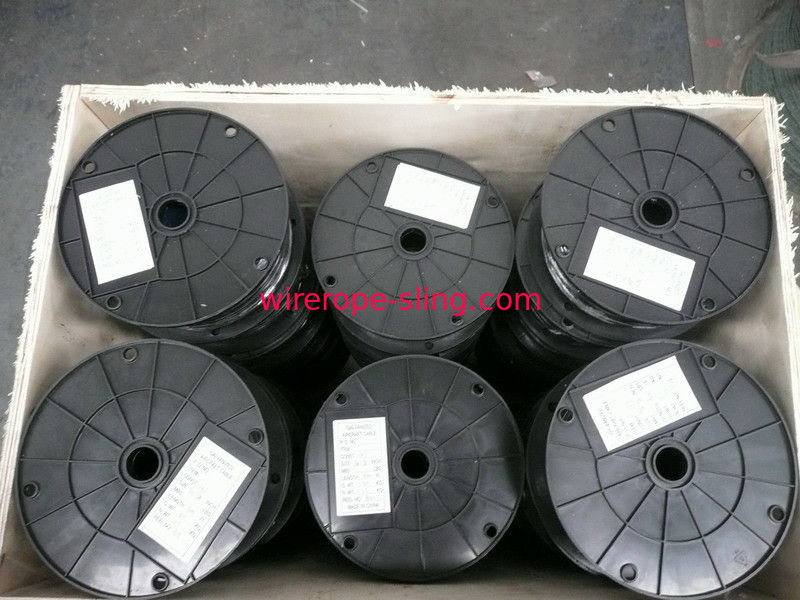

|Packaging Details:||Wooden Reel|
|Delivery Time:||15 days after the order confirmation|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100tons monthly|
|Material:||Stainless||Fastener Type:||Wire Rope|
|Rope Configuration:||Twisted||Vinyl Coated:||Yes|
|Colour:||As Request||OEM / ODM:||Available|
vinyl coated wire rope,
nylon coated wire rope

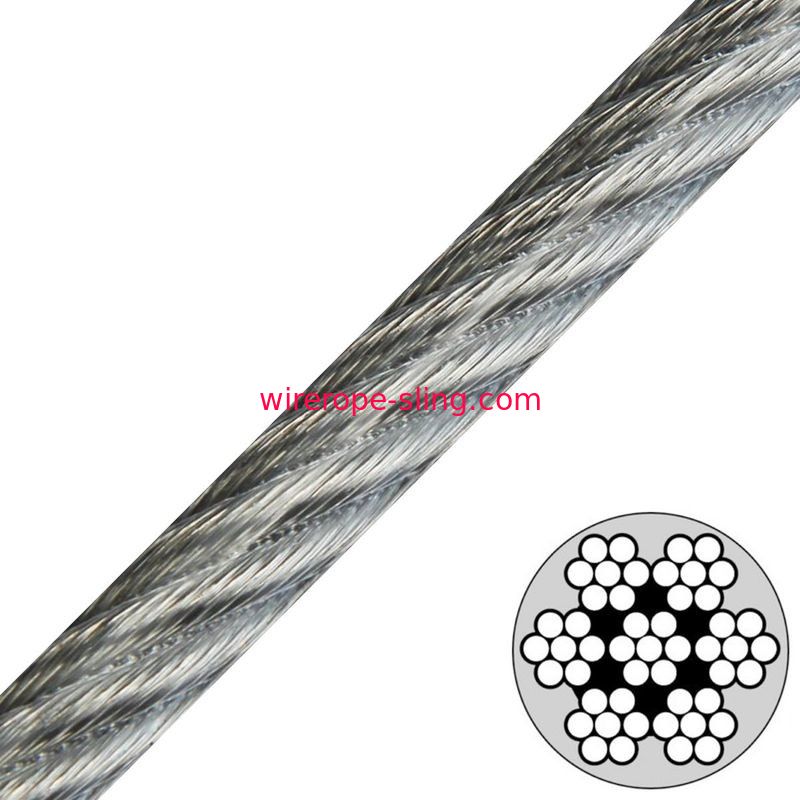

7x7 Vinyl Coated Steel Cable , Type Ss 302/304 stainless steel wire rope
Vinyl is a general purpose coating which is very flexible and easy to strip. Vinyl coated steel cable applications include security cables, lock cable systems, animal runs and display purposes.
7x7 Stainless aircraft cable is one of the most common, cost effective and versatile wire ropes. The 7x7 construction is of medium flexibility and is used in many of the same applications as 7x19 but where a little less flexibility is needed.
Our Aircraft Cable meets Applicable Federal Specification RR-W-410 and is Independent Lab tested and verified.
Inspect regularly for visible damage, distortion, elongation, corrosion, cracks, nicks or abrasion, which may cause failure or reduce the strength of the Wire Rope.
Wire Rope and Steel Cable must be stored, used and maintained in accordance with the normal safety standards.
Verify that replacement Wire Ropes are correct for your application and meet your specifications.
Avoid shock loads. Do not load Wire Rope to the breaking strength limits. End user must determine an appropriate safety factor for the application.
|Diameter||Specification||Min. Breaking Strength||Jacket Color||Approx. Weight Per 100'|
|.0469 - .0625||Commercial||270||Clear||0.5|
|.0625 - .1250||Commercial||480||Clear||1.3|
|.0625 - .1250||Commercial||480||White||1.3|
|.0937 - .1250||Commercial||920||Clear||2|
|.0937 - .1250||Commercial||920||White||2|
|.0937 - .1562||Commercial||920||Clear||2.4|
|.0937 - .1875||Commercial||920||Clear||2.8|
|.1250 - .1875||Commercial||1,700||Clear||3.9|
|.1250 - .1875||Commercial||1,700||White||3.9|
|.1250 - .2187||Commercial||1,700||White||3.9|
|.1250 - .2500||Commercial||1,700||Clear||5.1|
|.1250 - .2500||Commercial||1,700||White||5.1|
|.1875 - .2500||Commercial||3,700||White||8|
|.1875 - .3125||Commercial||3,700||Clear||11.2|
|.1875 - .3125||Commercial||3,700||White||9.1|
|.1875 - .3750||Commercial||3,700||White||11.2|
|.2500 - .3750||Commercial||6,100||White||14.2|
