Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE, CCS, Lloyd’s, ABS,DNV |
| Model Number: | 6 x 19S – IWRC-RCN 02 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1000mtrs |
| Price: | USD1200 per Ton |
| Packaging Details: | Wooden Reel or as request |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons monthly |
|
Detail Information |
|||
| Packing: | Wooden Reel,Steel Reel | Length: | 500mtrs/1000mtrs/2000mtrs Available |
|---|---|---|---|
| Tensile Strength: | 1570,1670,1770,1870,1960MPA | Surface: | Galvanized/Ungalvanized |
| Material: | Steel | Lay: | RHOL, LHOL |
| Standard: | ASTM, BS, GB, JIS | Alloy Or Not: | Non-alloy |
| High Light: |
crane pendant cable,overhead crane wire rope |
||
Product Description

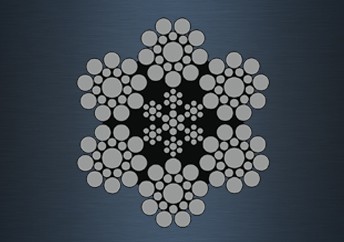

6-strand ordinary lay rope, suited for use as a trolley or mounting rope.The Crane Wire Rope must be high performance structure, Fox example Liner contact wire rope, compacted wire rope and swaged wire rope, the strength of steel wire rope generally chooses 1670MPa/1770MPa/1870MPa, and the common wire rope specifications are 26mm, 28mm, 30mm, 32mm until 52mm; the port crane steel wire rope is working badly Environmental , the wire rope must withstand the cold resistance to live high temperature, so it is necessary to improve the lubrication conditions of the wire rope; the wire rope structure can choose 6 x 19S + IWRC, 6*36WS+IWRC or 8*36WS+IWRC.
►MULTILAYER SPOOLING
►SUPERFILL®
►PLASTFILL®
Specifications
The minimum diameter ratio of the diameter steel rope and the drum
| Wire Rope Construction | Minimum drum dia. (mm) | Wire Rope Construction | Minimum drum dia. (mm) | ||
| (d=Wire Rope dia.) | (d=Wire Rope dia.) | ||||
| 6&8 strands wire rope | 6×7 6T×7 6×10TS | 42×d | Micro rotating wire rope | 18×7 | 34×d |
| 6×19 6×19S 6×19W | 30×d | 18×19S 18×19W | 26×d | ||
| 6×26WS 6×21Fi | 28×d | 18×26WS | 24×d | ||
| 6×25Fi 6×31WS | 25×d | 4V×39S 4V×48S 4×36WS | 26×d | ||
| 6×29Fi 6×37 6×36WS | 22×d | Micro non rotating wire rope | 24W×7 | 30×d | |
| 6×41WS 6×49SWS | 19×d | 35W×7 | 30×d | ||
| 8×19S 8×19W | 25×d | Compacted Wire Rope | 6×K19S 6×K26WS | 30×d | |
| 8×26WS | 24×d | 6×K31WS 6×K41WS | |||
| 8×25Fi 8×31WS | 20×d | 8×K25Fi 8×K29Fi | 30×d | ||
| 8×36WS | 18×d | 8×K36WS 8×K41WS | |||
| 6V×30 6×34 6×37 | 30×d | 15×K7 18×K7 35W×K7 | 36×d | ||
Applications
There are many kinds of wire ropes for tower crane. The 6*37+FC wire rope was used as the main rope to lift the rope. With the development of the wire rope technology and the improvement of the production level of the wire rope, the wire rope of the tower crane has developed in the direction of resistance to fatigue and wear resistance and high breaking tension. Line contact wire rope structure 6*29Fi+IWR more, common wire rope specification 6*29Fi+IWRC-11mm, 12.5mm, 14mm; also useful for forging steel wire rope 4V*39S+5FC-12mm, 13mm, 14mm; the choice tower crane without rotating steel rope with 35W*7 and 18*7+FC over 50 meters, 35W*7 this structure is better than 18*7+FC, steel wire in the middle of steel. Silk renewal and softness are more suitable; common 5012/5013/5015 Tower Cranes Wire Rope use 35W*7-14mm structure.
Technical Table
| Breaking Loads | ||||
|---|---|---|---|---|
| Nominal Diameter | Weight | Minimum Breaking Loads | ||
| 1960 Mpa | ||||
| [mm] | [inch] | [kg/m] | [kN] | [Kg] |
| 6.5 | 0.17 | 30 | 3,059 | |
| 7 | 0.20 | 34 | 3,467 | |
| 7.5 | 0.23 | 39 | 3,977 | |
| 8 | 5/16 | 0.26 | 45 | 4,589 |
| 9 | 0.32 | 57 | 5,812 | |
| 10 | 0.41 | 70 | 7,138 | |
| 11 | 7/16 | 0.47 | 84 | 8,566 |
| 12 | 0.59 | 101 | 10,299 | |
