China Wire Rope Sling manufacturer

IWRC Tower Crane Cable , Steel Wire Rope 6 Strand Regular Lay For Rotary Drilling Rig

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6 x K31WS – IWRC(K)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL, LHOL
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

crane pendant cable


overhead crane wire rope

Product Description

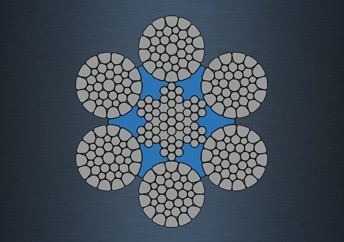

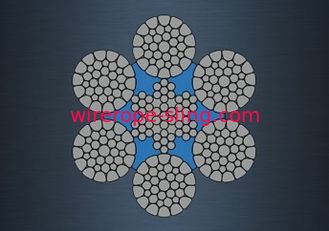

6 x K31WS – IWRC(K) Tower Crane Steel Wire Rope for Rotary Drilling Rig


Product Details

6-strand regular lay rope, suited as a crowd rope for rotary drilling rigs.6 x K31WS – IWRC(K) Tower Crane Steel Wire Rope for Rotary Drilling Rig has outer compacted wires structure and solid polymer-filled wire rope core.Wire rope in which the free internal spaces are filled with a solid polymer that extends to, or slightly beyond, the outer circumference of the wire rope,this makes wire rope better quality,super compact structure,reduce the contact of inner wires with outer wires,and make a long service life.You got up to your payment.

  • 6 x K31WS – IWRC(K), RCN 08
  • Ordinary lay, right or left lay
  • Use without rope swivel

The minimum diameter ratio of the diameter steel rope  and  the drum

Wire Rope Construction Minimum drum dia. (mm) Wire Rope Construction Minimum drum dia. (mm)
(d=Wire Rope dia.) (d=Wire Rope dia.)
6&8 strands wire rope 6×7 6T×7 6×10TS 42×d Micro rotating wire rope 18×7 34×d
6×19 6×19S 6×19W 30×d 18×19S 18×19W 26×d
6×26WS 6×21Fi 28×d 18×26WS 24×d
6×25Fi 6×31WS 25×d 4V×39S 4V×48S 4×36WS 26×d
6×29Fi 6×37 6×36WS 22×d Micro non rotating wire rope 24W×7 30×d
6×41WS 6×49SWS 19×d 35W×7 30×d
8×19S 8×19W 25×d Compacted Wire Rope 6×K19S 6×K26WS 30×d
8×26WS 24×d 6×K31WS 6×K41WS
8×25Fi 8×31WS 20×d 8×K25Fi 8×K29Fi 30×d
8×36WS 18×d 8×K36WS 8×K41WS
6V×30 6×34 6×37 30×d 15×K7 18×K7 35W×K7 36×d


  • Tower Crane
  • Rotary Drilling Rig


Choose the most suitable wire rope for your applications


Do not feel that it is omnipotent because it is called wire rope. In fact, if the type is not chosen, it may be more secure on some occasions. For example, the load capacity of ropes of different diameters is very different from different weaving methods. Generally speaking, after selecting the ropes, it is not allowed to increase the weight of hoisting.

Similar to the ordinary steel, when the load exceeds the load-bearing capacity, the wire rope will appear obvious or not obvious deformation. Generally speaking, coarse ropes are less susceptible to deformation than finer ones. However, if the rough ropes are not subjected to special treatment, they may break. This is why the rope is not thicker and better.

Choosing what diameter of rope is usually in the early stages of construction, experts will give a plan. In the project, it is strictly forbidden to go against the aggravation of the program. You should know that the safety hazard of the hoist itself is very large. Once it breaks, it may cause serious or even serious accidents.

Technical Table

IWRC Tower Crane Cable , Steel Wire Rope 6 Strand Regular Lay For Rotary Drilling Rig 0

Breaking Loads
Nominal Diameter Weight Minimum Breaking Loads
1770 Mpa 1960 Mpa
[mm] [kg/m] [kN] [Kg] [kN] [Kg]
20 1.8 315 32,121 349 35,588
22 2.2 381 38,851 410 41,808
24 2.7 453 46,193 502 51,190
26 3.0 532 54,249 589 60,061
28 3.5 617 62,916 690 70,360
30 4.0 708 72,196 784 79,946
