China Wire Rope Sling manufacturer

Flexible Tower Crane Cable , Drilling Wire Rope High Temperature Resistance

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6 x K26WS-EPIWRC
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL, LHOL
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

crane pendant cable


overhead crane wire rope

Product Description

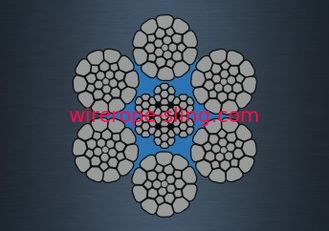

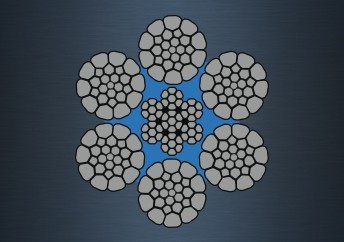

Flexible 6 x K26 / 31WS-EPIWRC Tower Crane Steel Wire Rope for Drilling Operations


Product Details

Flexibility, resistance to mechanical wear and high breaking force: these are the qualities a drill line must possess. This 6-strand rope with SUPERFILL® compaction technology and a PLASTFILL® insert combines all these characteristics for perfect drilling operations.6 x K26 / 31WS-EPIWRC Tower Crane Steel Wire Rope has fully compacted wires structure,this makes wire rope better quality,super compact structure,and make a long service life.You got up to your payment.

  • 6 x K26WS-EPIWRC, RCN 06
  • Ordinary lay, right or left lay
  • Use without rope swivel

The minimum diameter ratio of the diameter steel rope  and  the drum

Wire Rope Construction Minimum drum dia. (mm) Wire Rope Construction Minimum drum dia. (mm)
(d=Wire Rope dia.) (d=Wire Rope dia.)
6&8 strands wire rope 6×7 6T×7 6×10TS 42×d Micro rotating wire rope 18×7 34×d
6×19 6×19S 6×19W 30×d 18×19S 18×19W 26×d
6×26WS 6×21Fi 28×d 18×26WS 24×d
6×25Fi 6×31WS 25×d 4V×39S 4V×48S 4×36WS 26×d
6×29Fi 6×37 6×36WS 22×d Micro non rotating wire rope 24W×7 30×d
6×41WS 6×49SWS 19×d 35W×7 30×d
8×19S 8×19W 25×d Compacted Wire Rope 6×K19S 6×K26WS 30×d
8×26WS 24×d 6×K31WS 6×K41WS
8×25Fi 8×31WS 20×d 8×K25Fi 8×K29Fi 30×d
8×36WS 18×d 8×K36WS 8×K41WS
6V×30 6×34 6×37 30×d 15×K7 18×K7 35W×K7 36×d


  • Tower Crane
  • Drilling Operations

The wire rope is very familiar to us, such as the clothesline in our life, and the rope in our industry, and the Kongfu of the male and female characters we see on TV, all of which need to rely on the wire rope, of course, the wire rope brings us a sense of security, but the inspection before use is the key to ensure safety.
First, when the wharf wire rope is used, we can stretch the wire as much as possible so that it can not only increase its toughness, but also improve its life. It can test its overload capacity in advance and the impact and vibration during operation. It is very necessary to draw before use.
Second, the wire rope inspection, careful is very important, every detail should be paid attention to, in the inspection, must do a careful record, and the degree of wire wear and tear, of course, there are more abnormal conditions are not to be ignored, are to record in detail, in order to ensure timely. Maintenance or replacement.

Technical Table
Flexible Tower Crane Cable , Drilling Wire Rope High Temperature Resistance 0

Breaking Loads
Nominal Diameter Weight Minimum Breaking Loads
1960 Mpa 2160 Mpa
[mm] [inch] [kg/m] [kN] [Kg] [kN] [Kg]
34.9 1 ⅜ 5.40 1,024 104,392 1,106 112,811
38.1 1 ½ 6.40 1,220 124,413 1,318 134,447
41.27 1 ⅝ 7.54 1,432 146,023 1,547 157,750
44.45 1 ¾ 8.95 1,661 169,340 1,795 182,997
47.6 1 ⅞ 9.98 1,904 194,192 2,058 209,853
50.8 2 11.50 2,197 224,015 2,344 239,017
54.0 2 ⅛ 13.00 2,451 249,922 2,649 270,078
56.0 - 13.87 2,636 268,778 2,848 290,454
