1/8 Stainless Steel Aircraft Wire Rope for Deck Cable Railing Kit,7 x 7 200 Feet T 316 Marine Grade

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-SSWR1182
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: US$12 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

StandardAisi, DIN, JISGrade300 Series
LengthAs per requestApplicationmachine, product
CertificationISOC Content (%)less than 0.06%
Si Content (%)less than 1%Place of OriginShanghai, China
High Light:

Stainless Steel Wire Rope

,

Stainless Wire Rope

Product Description



Stainless steel wire ropes boast higher corrosion resistance to salt water than galvanized wire ropes, so they are the best choice of marine applications. Meanwhile, the bright appearance of galvanized wire ropes will dull over time, but stainless steel wire rope will maintain its bright and modern appearance for years. Therefore they are generally used in decoration for modern display and architectural purposes, such as railings, architectural cables, cable balustrades, handrails, etc.


  • ▲Stainless steel cable 1/8-Inch diameter, 200-Feet length, 1780 lb breaking strength

  • ▲Never Rust - Marine Grade 316 Stainless Steel has the highest corrosion protection.

  • ▲Steel wire rope cable perfect for cable railing project, 7 x 7 cable is Sturdy, Long Lasting, and high tensile strength.

  • ▲Wire rope Wear resistance, suitable for tension, landscape and architectural use.

  • ▲Flexible and perfect for applications requiring swage fittings, thimbles or wire rope ferrules

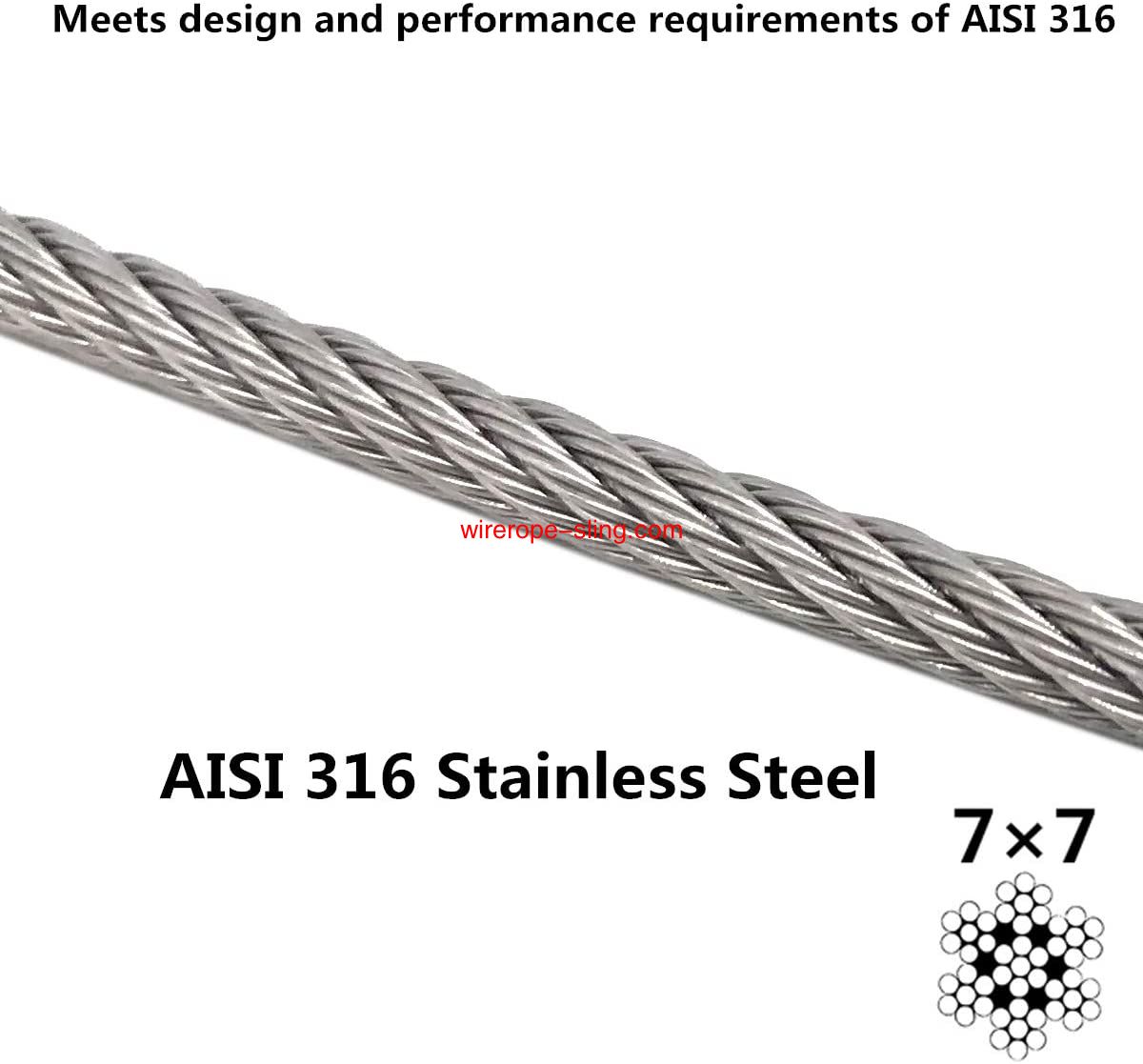

7 × 7 stainless steel wire rope

The cross section of stainless steel wire rope SSWR-77

Features:

  • More flexible than 1 × 19 stainless steel wire rope.

  • More rigid than 7 × 19 stainless steel wire rope.

  • Excellent breaking load qualities.

  • Available from 0.54mm to 12mm in diameter

Application:

  • Marine industry such as rigging, sewage treatment work, steering cable and mast stay.

  • General engineering applications such as control cable, davit ropes and slings

TypeCable diameterTensile strengthMinimum breaking loadWeight
SSWR-77-10.54mm1770Mpa0.18KN0.0012kg/m
SSWR-77-20.68mm1770Mpa0.29KN0.0018kg/m
SSWR-77-30.81mm1770Mpa0.41KN0.0026kg/m
SSWR-77-40.9mm1570Mpa0.49KN0.0032kg/m
SSWR-77-51mm1570Mpa0.56KN0.004kg/m
SSWR-77-61.25mm1570Mpa0.88KN0.005kg/m
SSWR-77-71.5mm1570Mpa1.27KN0.009kg/m
SSWR-77-81.8mm1570Mpa0.83KN0.013kg/m
SSWR-77-92mm1570Mpa2.25KN0.016kg/m
SSWR-77-102.5mm1570Mpa3.52KN0.025kg/m
SSWR-77-113mm1570Mpa5.07KN0.034kg/m
SSWR-77-124mm1570Mpa9.01KN0.063kg/m
SSWR-77-135mm1570Mpa14.08KN0.098kg/m
SSWR-77-146mm1570Mpa20.28KN0.142kg/m
SSWR-77-157mm1570Mpa27.6KN0.193kg/m
SSWR-77-168mm1570Mpa36.05KN0.253kg/m
SSWR-77-1710mm1570Mpa56.3KN0.393kg/m
SSWR-77-1812mm1570Mpa81.1KN0.566kg/m

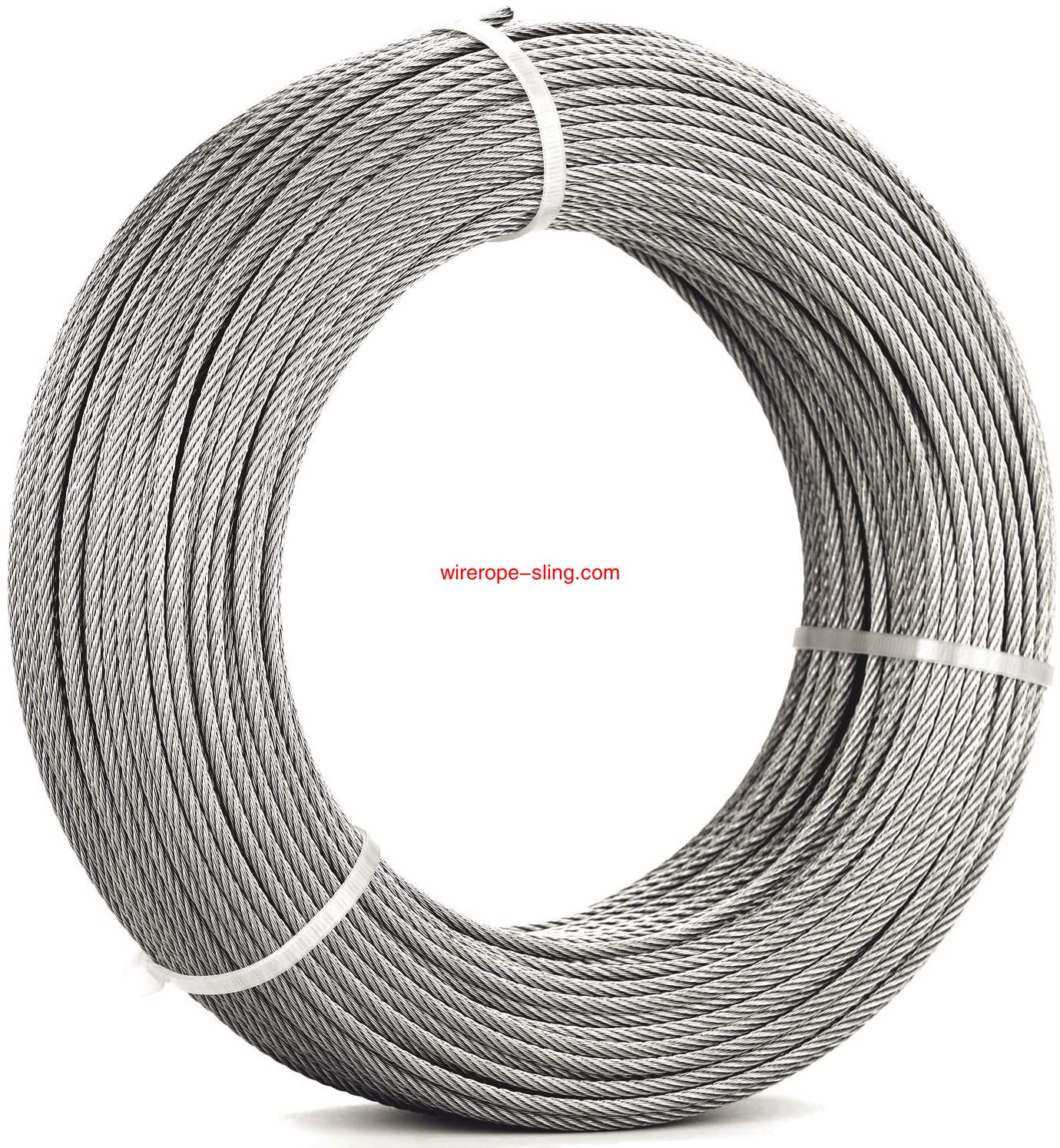

316 stainless steel cable

Stainless steel cable

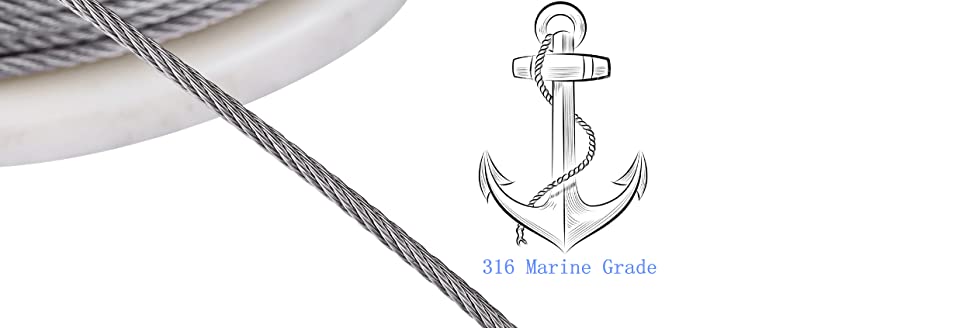

316 Marine Grade Never Rust

Material: 316 Marine Grade Stainless steel

Cable diameter: 1/8"/ 3.2 mm

Construction: 7 x 7

Breaking strength: 1780 lbs

Senmit stainless steel cable

stianless steel clips

wire trellis cable

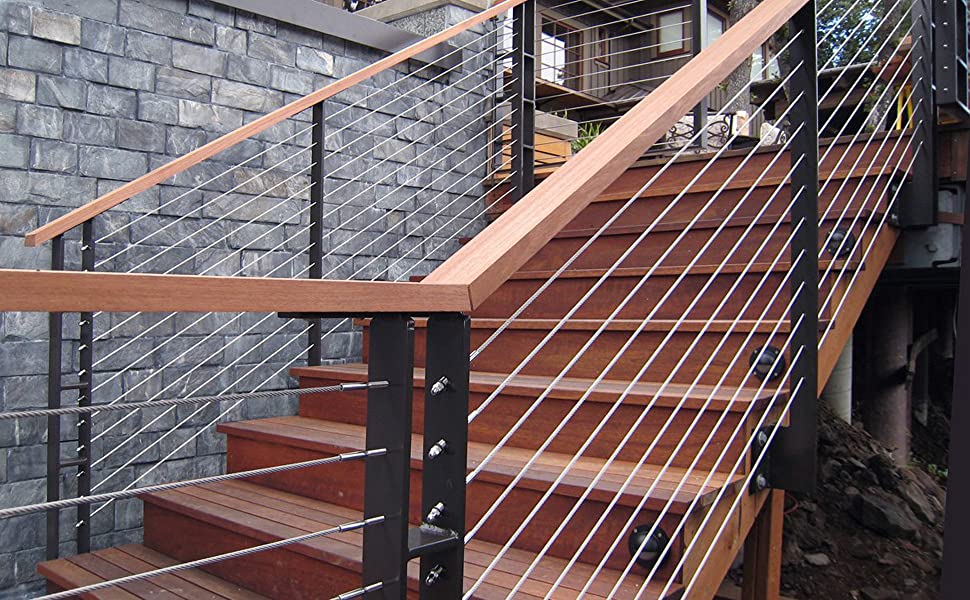

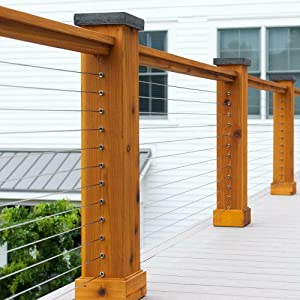

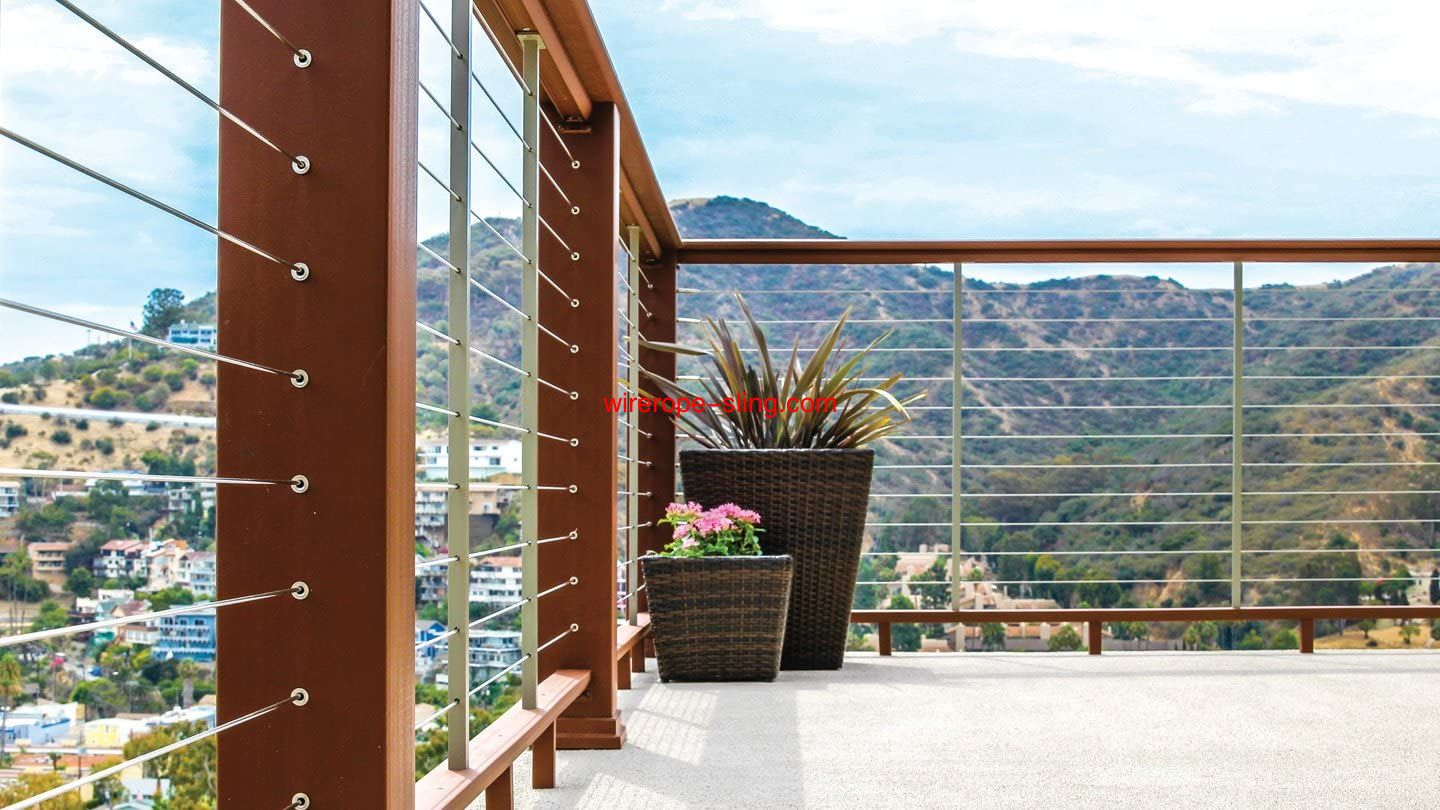

Deck Cable Railing Project

Perfect for cable railing project, 7 x 7 cable is Sturdy, Long Lasting, and high tensile strength

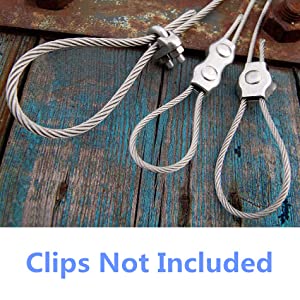

Stainless steel wire rope grips

Stainless steel wire rope grips and clips for a quick and easy way to create eyelets in wire rope. Ideal for signage, catenary projects, wire plant supports and other non-lifting applications.

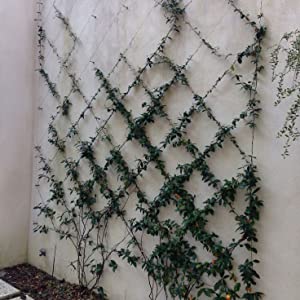

Garden Wire Trellis for Plants

A stainless steel lattice can add style to any building with vertical and horizontal wires to provide support for climbing plants

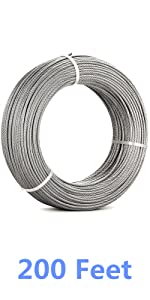

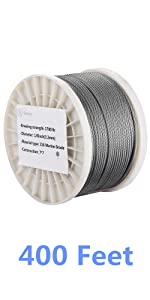

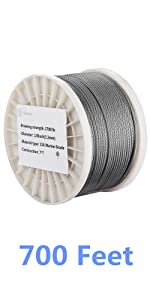

stainless steel cable 200 feetstainless steel cable 300 FeetSenmit 18 Stainless Steel Cable 400 FeetSenmit 18 Stainless Steel Cable 500 FeetSenmit 18 Stainless Steel Cable 700 Feet

Senmit 1/8" Stainless Steel Cable 200 FeetSenmit 1/8" Stainless Steel Cable 300 FeetSenmit 1/8" Stainless Steel Cable 400 FeetSenmit 1/8" Stainless Steel Cable 500 FeetSenmit 1/8" Stainless Steel Cable700 Feet
Marine Grade316316316316316
Type7x 77x 77x 77x 77x 7
Diameter1/8"1/8"1/8"1/8"1/8"
Length200 Feet300 Feet400 Feet500 Feet700 Feet

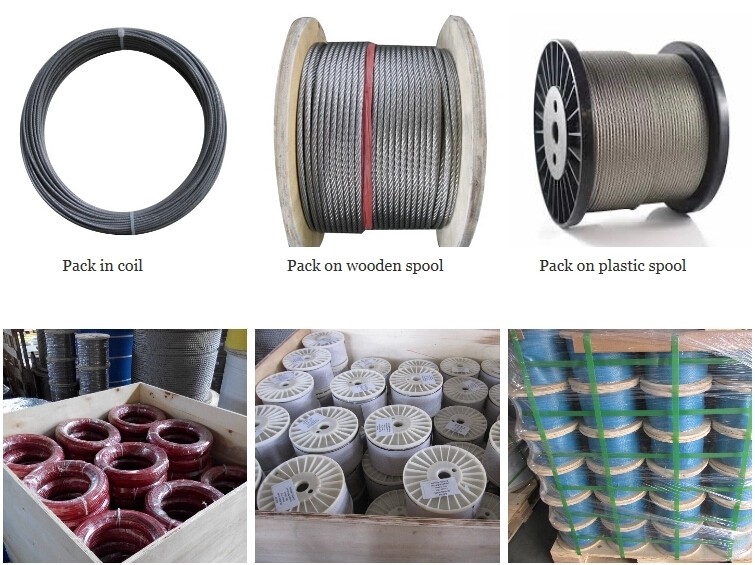

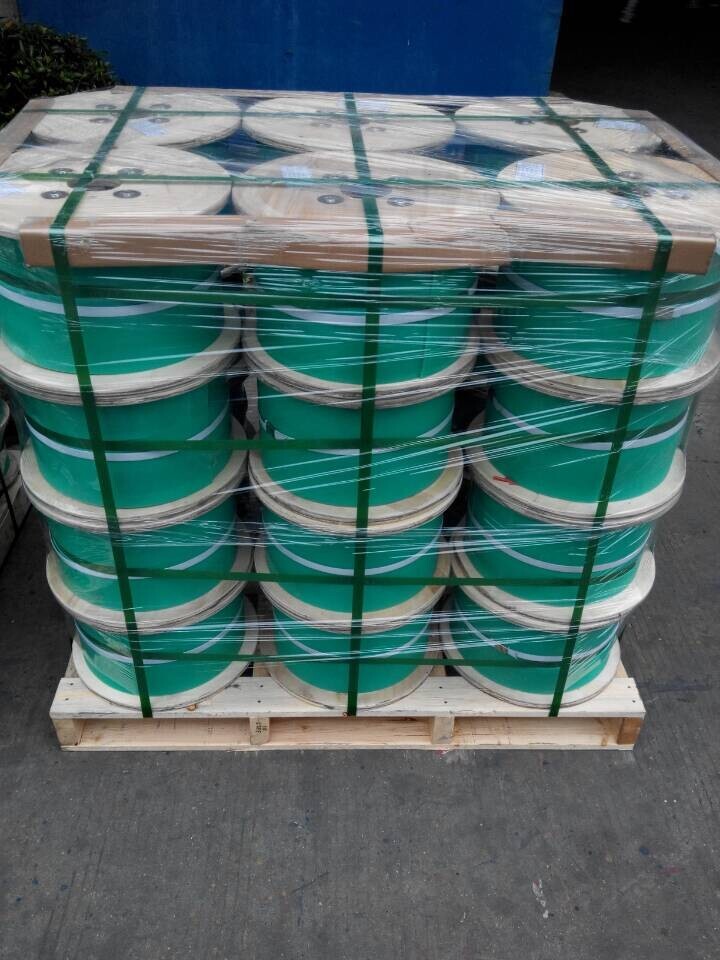

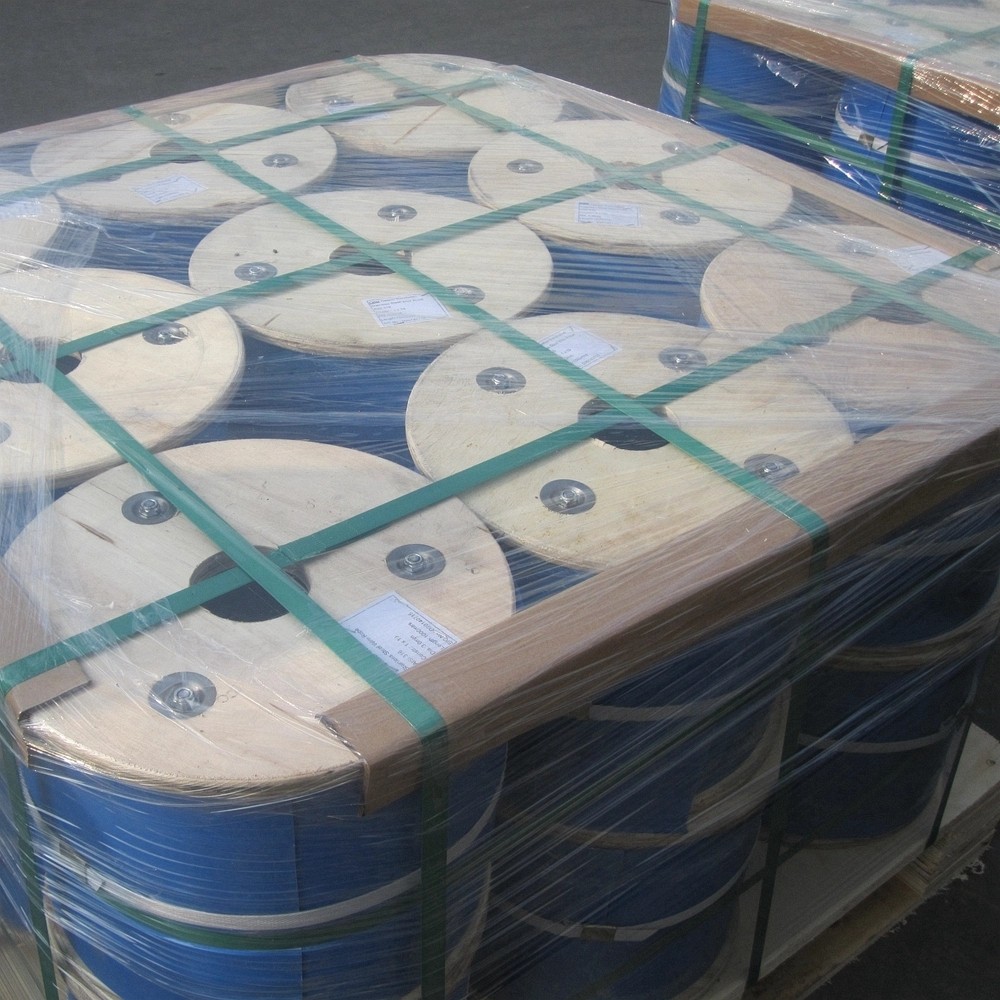

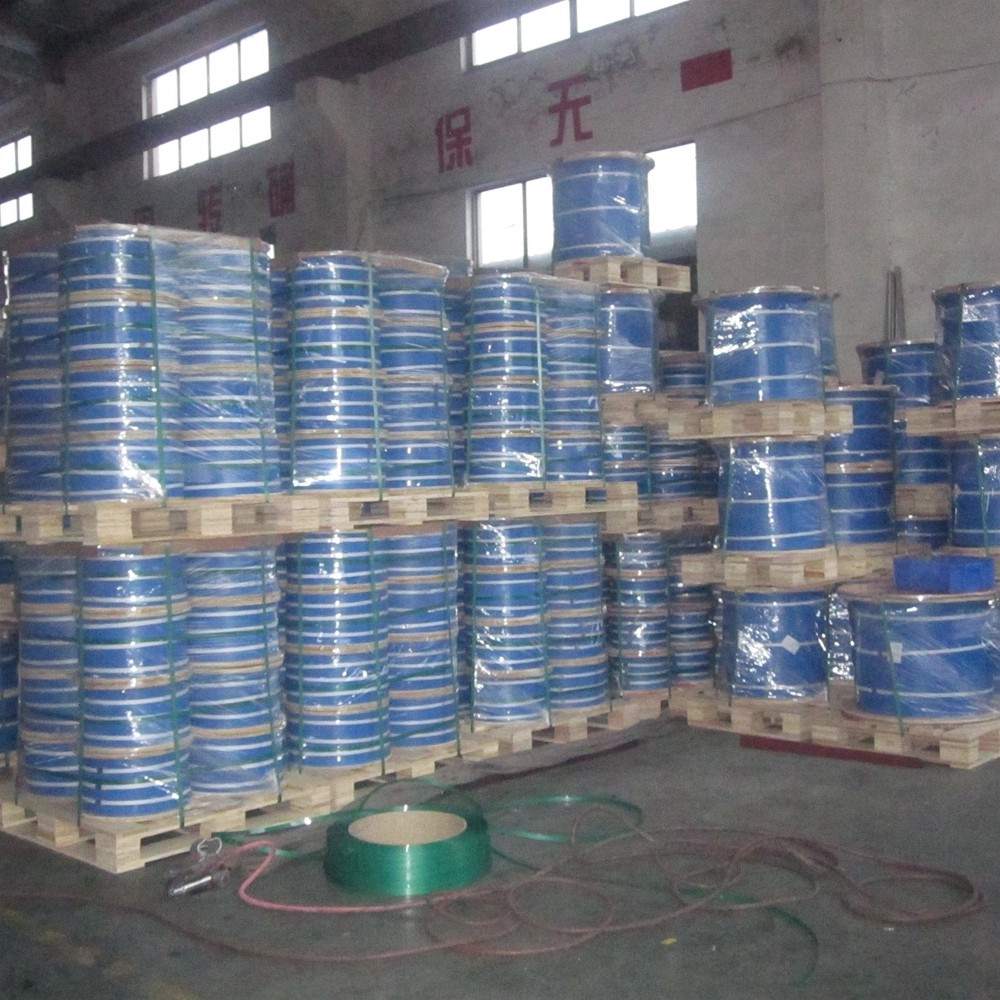

Package:
Wooden spool
Plastic spool
Coil
Wooden box
Carton box
Customized type

Delivery Time
Usually 30 days for one container

Our advantages

1.Professional: Over 20  years  experience on stainless wire ropes, so quality is good.

2.High quality: Strict test, meet standard EN12385, RR-W-410, JIS, etc.

3.Competitive price: we are factory, goods directly ship out from our factory.

4.SS wire ropes rigging hardware is available to match the ropes,it wave save you much time.

5. Good service: Quick respons, patient staff.Fast reply with 24/7 service.

6.Trial order acceptable.
