Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CE, CCS, Lloyd’s, ABS,DNV |
Model Number: | 4xK26WS |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1000mtrs |
Price: | USD1200 per Ton |
Packaging Details: | Wooden Reel or as request |
Delivery Time: | 10-15days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000tons monthly |
Detail Information |
|||
Material: | Steel | Surface: | Galvanized |
---|---|---|---|
Tensile Strength: | 1960MPA | Length: | 500mtrs/1000mtrs/2000mtrs Available |
Packing: | Wooden Reel,Steel Reel | Lay: | RHOL,LHOL,RHLL,LHLL |
High Light: |
galvanized cable wire,galvanized steel wire rope |
Product Description
4xK26WS - SCF is an unusual construction of steel wire rope, specifically engineered for use with the majority of pulling machines, this construction has a synthetic fiber core and the outer wires are compacted to ensure smother operation through a pulling machine and around pullys.

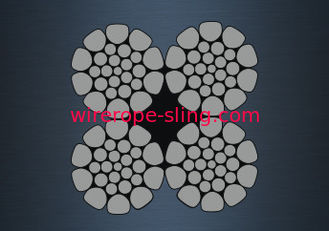

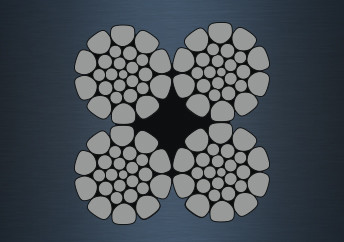

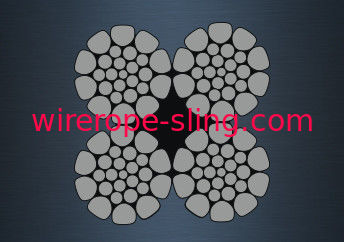

Cross Section Show
Steel Wire Rope for hanging basket
The working principle of the hanging basket is similar to the lever principle. Because of its high work danger, such as building basket, glass curtain wall cleaning basket, all belong to high altitude operation. For its special basket steel wire rope, it must have strong corrosion resistance, high tensile strength and flexibility, so as to ensure high altitude operation. Safety, high quality steel wire rope steel wire strength in general to reach 1960-2160, and hot galvanizing to ensure the corrosion resistance of the rope, the middle PP core (commonly known as nylon core) also guarantees its flexibility.
The specifications of the wire rope of the hanging basket are generally 8.3mm and 8.6MM. The common structures are 4*31SW, 4*19S, 6*19S and 4*25FI, and the most commonly used is the hot-dip galvanized 4*31SW+PP basket.
The common hanging basket on the market is galvanized and hot-dip galvanized, some of which are galvanized steel wire, but it is easy to rust. This will cause the whole rope to be completely oxidized in the short term.
Breaking Loads - 1960 N/mm2 | |||
Rope | Out. Wire | Minimum Breaking Force | Length Mass |
[⌀mm] | [⌀mm] | [kgf] | [Kg/M] |
8.4 | 0.63 | 4.587 | 0.26 |
11.5 | 1.02 | 9.174 | 0.53 |
16.30* | 1.05 | 17.329 | 1.04 |
*4 x K36WS - SFC |
