6x7 (6/1) Galvanized Wire Rope Corrosion Resistance High Breaking Strength

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6x7 (6/1)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Material:SteelCore:Fiber/IWRC
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description



6x7 (6/1) Fiber / IWR Core Galvanized Steel Wire Rope for Small diameter wire slings



Product Details



  6x7 construction general purpose wire rope is available with either FC (fibre core) or WSC (wire strand core). When supplied with a WSC the rope is more commonly referred to as 7x7. The rope is very popular in smaller diameters from 0.5mm to 2mm where the cable remains very flexible. 6x7 ropes become quite rigid in the larger diameters and are often considered stiff in diameters 6mm and above. In these diameters they tend to be used for applications where the rope is omit/not working. A typical example being a mast stay. 7x7 construction is readily available in both galvanised and marine grade stainless steel.





Cross Section Show

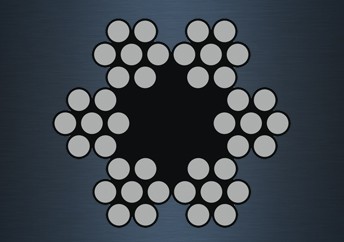

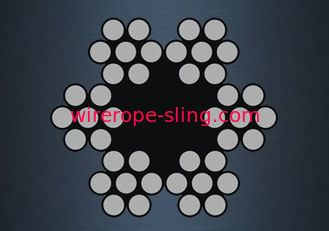

6x7+FC



6x7 (6/1) Galvanized Wire Rope Corrosion Resistance High Breaking Strength 0

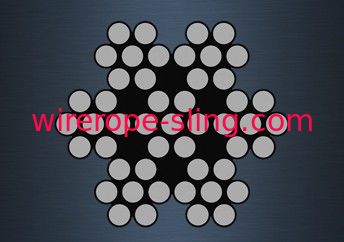

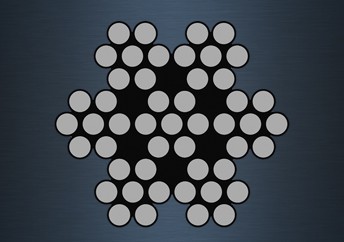

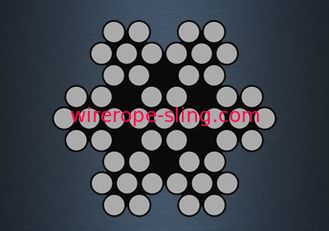

7X7



6x7 (6/1) Galvanized Wire Rope Corrosion Resistance High Breaking Strength 1







Applications



  • General engineering applications
  • Small diameter wire rope slings
  • Stay wires
  • Fencing rope
  • Catenary wire
  • Garage door cables
  • Standing rigging
  • Hanging signs
  • Ski-lifts



How should a novice purchase various kinds of wire ropes?



Unlike work and school, no one will give you too much time. A lot of details need to be kept in mind. The most typical thing is the purchase of the material. When you actually buy it, you will find that the same type of product is so overwhelming that people can't choose it. In fact, as a novice purchasing, you only need to consider a factor, that is, the material you buy, how to use it, and where to use it.



In order to facilitate the use of different uses of wire rope in the structure and details of the relatively great changes. This also directly determines that products of different uses may be very different. Before you buy it, you might as well ask the boss what kind of material and place you want to use. If you can take the materials out of the construction site to buy the same, you can also reduce a lot of trouble.



Paying attention to details is not a disgrace. Think more, think more and think more, so that you can adapt yourself to work in a short time. The same is true of the small matter of buying materials.







Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
1770 Mpa 1960 Mpa
[mm] [kg/m] [kN] [Kg] [kN] [Kg]
14 0.784 123.5 12,597 136.8 13,949
16 1.024 161.3 16,453 178.6 18,219
18 1.296 204.2 20,824 226.1 23,059
20 1.6 252 25,708 279.1 28,468
22 1.936 305 31,107 337.7 34,447
24 2.304 362.9 37,020 401.9 40,994
26 2.704 426 43,448 471.7 48,111
28 3.136 494 50,389 547 55,798
30 3.6 567.1 57,845 628 64,054
32 4.096 645.2 65,814 714.5 72,879
34 4.624 728.4 74,298 806.6 82,274
36 5.184 816.6 83,296 904.3 92,238
38 5.776 909.9 92,809 1007.6 102,771
40 6.4 1008.2 102,835 1116.4 113,874
42 7.056 1111.5 113,376 1230.8 125,546
44 7.744 1219.9 124,431 1350.9 137,788
46 8.464 1333.3 136,000 1476.5 150,598
48 9.216 1451.8 148,083 1607.6 163,979
