China Wire Rope Sling manufacturer

Steel Wire Cable Gym Equipment Impact Toughness Long Service Life Wear Resistance

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6x19 (12/6/1)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelSurface:Galvanized
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description



6x7 (6/1) Fiber / IWR Core Galvanized Steel Wire Rope for Small diameter wire slings



Product Details



 This 6x19 compacted wire rope construction is available with either FC (fibre core) or WSC (wire strand core). When supplied with a wsc the rope is more commonly referred to as 7x19. The rope is very popular in diameters from 3mm to 16mm and is used on a variety of applications. 6x19 FC and 6x19 WSC (7x19) is very flexible in diameters 3mm to 6mm and is used for many applications where wire ropes are running over pulleys. 7x19 construction is readily available in both galvanised and marine grade stainless steel.


Cross Section Show

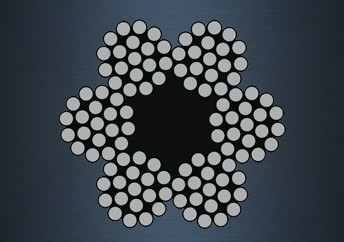

6x19 (12/6/1) Fiber Core Galvanized Steel Wire Rope

Steel Wire Cable Gym Equipment Impact Toughness Long Service Life Wear Resistance 0

6x19 (12/6/1) IWS Core Galvanized Steel Wire Rope

Steel Wire Cable Gym Equipment Impact Toughness Long Service Life Wear Resistance 1



Applications


  • Where cables are required to run over pulleys
  • General engineering applications
  • Industrial door cables
  • Garage door cables
  • Control cables
  • Gym equipment cables
  • Wire rope slings
  • Wind turbine
  • Whip checks
  • Winch ropes


How to choose a wire ropes?

Steel wire rope is a consumable material widely used in various occasions. Choosing what kind of rope is very important. This material has undergone many improvements and changes since its birth. Just because of the development of surface coating, a thick teaching material can be produced. Generally speaking, this material has the following distinctive characteristics.

The first feature is that the specificity is strong. Many people may think that wire rope is also a kind of rope. How much should we pay attention to? The answer is yes. For example, the traction rope of colliery and iron ore may be very different. Elevator cables and general ropes will also be relatively large.

Two is the standard can be high and not low. That is to say, the rope with strong load-bearing ability can be used in occasions where traction and load-bearing capacity are weak. A specially coated rope can be used in a common occasion. But in turn, it must be unfounded. This is something we must pay attention to in engineering.


Breaking Loads
Nominal DiameterApproximate MassMinimum Breaking Loads
1770 Mpa1960 Mpa
[mm][kg/m][kN][Kg][kN][Kg]
30.0314.94985.4552
40.0558.78869.6982
50.08713.61,385151,534
60.12519.61,99521.72,209
70.1726.62,71529.53,007
80.22134.83,54738.53,928
90.28444,48948.74,971
100.34654.35,54260.26,137
110.41965.86,70672.87,426
120.49878.27,98186.68,838
130.58591.89,367101.710,372
140.678106.510,863117.912,029
160.886139.114,18915415,712
181.121176.117,95819519,885
201.384217.422,170240.724,550
221.67526326,826291.229,705
241.99331331,925346.635,352
262.339367.337,467406.841,489
303.114489.149,883541.555,237
323.543556.456,756616.262,848
344628.264,072695.670,950
364.484704.271,831779.879,542
384.996784.780,034868.988,626
405.536869.488,681962.898,200
