Fiber Iwrc Steel Wire Rope , Flexible Wire Rope JIS Standard For Lifeboat Falls

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6x36 (14/7+7/7/1)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelSurface:Galvanized
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description



6x36 (14/7+7/7/1) Fiber/IWR core Galvanized Steel Wire Rope for Lifeboat falls



Product Details


6x36 is a flexible general engineering wire rope readily available in galvanised, ungalvanised and marine grade stainless steel. The wire rope has an equal lay construction (warrington seale) and achieves a superior breaking load to the 6x19 construction range. The construction has been designed to give a flexible rope with a good fatigue life. A 6x36 wire rope is available with either FC (fibre core) or IWRC (independent wire rope core) and is used for a wide range of applications, examples of which are shown below:

Applications



  • Holding and closing ropes for grab cranes
  • General engineering applications
  • Wire rope slings
  • Crane ropes
  • Winch ropes
  • Hoist rope
  • Wire rope rigging applications
  • Lifeboat falls
  • Mooring ropes
  • Pursing wires
  • Luffing ropes
  • Tow ropes






Cross Section Show

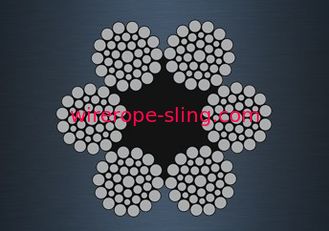

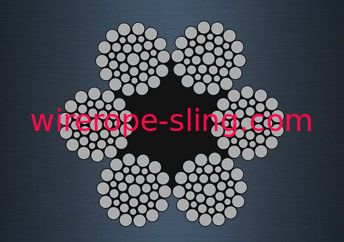

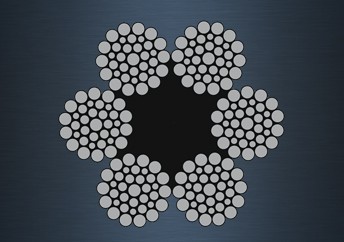

6x36 (14/7+7/7/1) - Fibre Core Wire Rope

.
 Fiber Iwrc Steel Wire Rope , Flexible Wire Rope JIS Standard For Lifeboat Falls 0

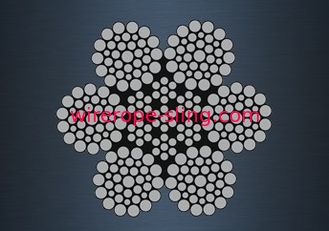

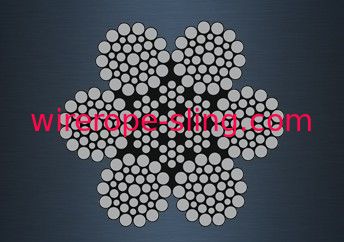

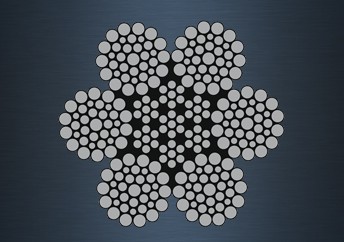

6x36 (14/7+7/7/1) - IWRC Wire Rope


Fiber Iwrc Steel Wire Rope , Flexible Wire Rope JIS Standard For Lifeboat Falls 1






As we all know, the application of wire rope is very extensive. It is a rope made of several fine wire after processing. Many industries of this rope play an important role and have many advantages. However, steel wire is easy to rust in a wet environment with long time. At that time, a new product appeared, namely galvanized steel wire rope.



As the name implies, this kind of rope is made of thin steel wire plated with zinc. The monofilament of this rope has strict standard of execution, including the weight of the zinc layer. The number and time of the experiment with copper sulphate should be strictly carried out, and the quality of the product is absolutely guaranteed. Even working in a wet or rainy environment for a long time is no problem. At present, it is widely used in many fields, such as construction, heavy transportation, marine space, marine oil exploration and some marine work. It is an indispensable tool in modern heavy industry production.



Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
1770 Mpa 1960 Mpa
[mm] [kg/m] [kN] [Kg] [kN] [Kg]
8 0.235 37.4 3813 41.4 4222
9 0.297 47.3 4825 52.4 5343
10 0.367 58.4 5957 64.7 6597
11 0.444 70.7 7209 78.3 7982
12 0.528 84.1 8579 93.1 9500
13 0.62 98.7 10068 109.3 11149
14 0.719 114.5 11677 126.8 12930
15 0.826 131.4 13405 145.5 14844
16 0.94 149.5 15252 165.6 16889
18 1.189 189.2 19303 209.6 21375
19 1.325 210.9 21507 233.5 23816
20 1.468 233.6 23831 258.7 26389
22 1.776 282.7 28835 313.1 31931
24 2.114 336.4 34317 372.6 38000
26 2.481 394.9 40274 437.2 44598
28 2.877 457.9 46709 507.1 51723
30 3.303 525.7 53620 582.1 59376
32 3.758 598.1 61008 662.3 67557
34 4.243 675.2 68872 747.7 76265
36 4.756 757 77213 838.3 85501
38 5.299 843.4 86030 934 95265
40 5.872 934.6 95325 1034.9 105557
42 6.474 1030.4 105095 1141 116377
44 7.105 1130.8 115343 1252.2 127724
46 7.766 1236 126067 1368.6 139600
48 8.456 1345.8 137268 1490.2 152003
