35X7 (6 / 1) Galvanized Wire Rope Light Weight Large Safety Factor Long Service Life

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 35X7 (6/1) Compacted
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Length:500mtrs/1000mtrs/2000mtrs AvailableSurface:Galvanized
Tensile Strength:1570,1670,1770,1870,1960MPAMaterial:Steel
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description





35X7 (6/1) Compacted - Rotation Resistant Galvanized Steel Wire Rope for Offshore crane



Product Details


This compacted wire rope construction is available in both galvanised and ungalvanised finish with either ordinary or langs lay. The construction family includes 32X7, 35X7 and 37X7.
Depending upon your requirement for higher breaking load or better wear characteristics, these wire ropes are available in different finishes and lubrications as well as being available with plastic impregnated or in compacted constructions.




Applications



  • Offshore crane rope
  • Deck crane rope
  • Pillar crane rope
  • Whip hoist rope
  • Main hoist rope
  • Crane rope



The damage of the wire rope of the tower crane often causes the occurrence of the safety accident. In order to reduce the hidden danger of the tower crane in the operation process, sometimes we must check the wire rope of the tower crane carefully. Once we find the steel wire rope to the scrap degree, we must change it immediately. The identification of the damage of the wire rope is not only a few aspects

First of all, we see whether the wire rope has a variant, sometimes slight deformation, sometimes more serious deformation, the serious deformation of the wire rope in the operation process is extremely irregular, and in the deformation place often appear broken wire, wear and tear, for such wire rope we should immediately announce the scrap;

Secondly, we often see the tower crane wire rope (mainly for multi-layer non rotating wire rope), found after deformation, like a cage like, or an umbrella like the same situation, in this case, the wire rope has been deformed, should be declared discarded;

Some tower crane wire rope, the time used for a long time, there will be a rope core spillover phenomenon, steel wire rope will sometimes appear, we must be cautious about this kind of wire rope, the appearance of this kind of rope is often related to the groove of the wire rope, many wire rope in the process of frequent operation, with the decrease of the pulley wheel diameter, the steel rope squeezing. The pressure is especially large, the inner core will overflow, and some tower crane wire rope is twisted or knot during operation. If the twisted knot or knot causes the wire rope not to be in a horizontal line in the radial direction, the wire rope should be discarded immediately.

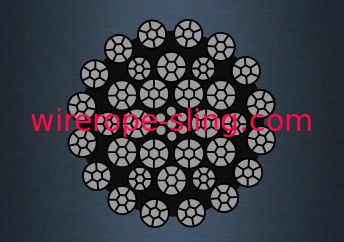

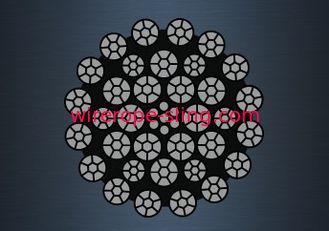

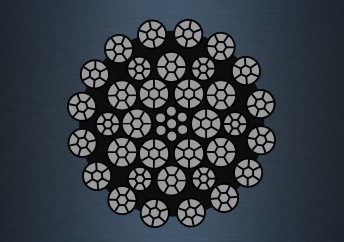

Cross Section Show


.

 35X7 (6 / 1) Galvanized Wire Rope Light Weight Large Safety Factor Long Service Life 0










Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
2160 Mpa
[mm] [kg/m] [kN] [Kg]
10 0.48 96 9,800
11 0.58 116 11,800
12 0.68 138 14,100
13 0.81 162 16,500
14 0.94 188 19,200
15 1.08 216 22,000
16 1.22 245 25,000
17 1.38 277 28,200
18 1.55 311 31,700
19 1.73 346 35,300
20 1.95 372 37,900
21 2,150 424 43,200
22 2.41 474 48,300
23 2,670 519 52,800
24 2.84 551 56,100
25 3.12 606 61,800
26 3.35 652 66,400
27 3.6 700 71,300
28 3.91 760 77,400
29 4.13 803 81,800
30 4.46 866 88,200
31 4.78 929 94,600
32 5.03 977 99,500
33 5.36 1,032.00 105,000
34 5.74 1,105.00 113,000
35 6.06 1,166.00 119,000
36 6.42 1,235.00 126,000
37 6.74 1,296.00 132,000
38 7.18 1,381.00 141,000
39 7.53 1,449.00 148,000
40 7.93 1,525.00 155,000
41 8.28 1,594.00 162,000
42 8.7 1,673.00 170,000
43 9.13 1,756.00 179,000
44 9.48 1,825.00 190,000
45 9.93 1,912.00 195,000
46 10.4 2,007.00 207,000
47 10.8 2,086.00 212,000
48 11.4 2,186.00 223,000
