Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CE, CCS, Lloyd’s, ABS,DNV |

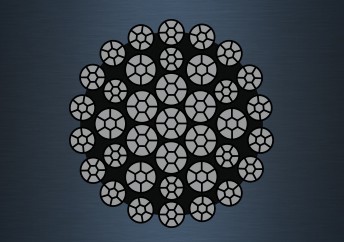

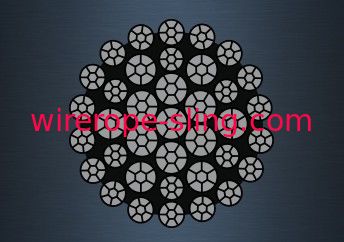

Model Number: | 37X7 (6/1) Compacted |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1000mtrs |
Price: | USD1200 per Ton |
Packaging Details: | Wooden Reel or as request |
Delivery Time: | 10-15days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000tons monthly |
Detail Information |
|||
Material: | Steel | Surface: | Galvanized |
---|---|---|---|
Tensile Strength: | 1570,1670,1770,1870,1960MPA | Length: | 500mtrs/1000mtrs/2000mtrs Available |
Packing: | Wooden Reel,Steel Reel | Lay: | RHOL,LHOL,RHLL,LHLL |
Standard: | ASTM, BS, GB, JIS | Alloy Or Not: | Non-alloy |
High Light: |
galvanized cable wire,galvanized steel wire rope |
Product Description
This compacted wire rope is available in both galvanised and ungalvanised finish with either ordinary or langs lay. The construction family includes: 32X7, 34X7 and 37X7.
Depending upon your requirement for higher breaking load or better wear characteristics, these wire ropes are available in different finishes and lubrications, as well as being available with plastic impregnated.
The Applications of Compacted Steel Wire Rope
.
Breaking Loads | |||||
Nominal Diameter | Approximate Mass | Minimum Breaking Loads | |||
1770 Mpa | 1960 Mpa | ||||
[mm] | [kg/m] | [kN] | [Kg] | [kN] | [Kg] |
14 | 0.95 | 154 | 15,708 | 171 | 17,442 |
15 | 1.09 | 177 | 18,054 | 196 | 19,992 |
16 | 1.25 | 203 | 20,706 | 225 | 22,950 |
18 | 1.58 | 257 | 26,214 | 285 | 29,070 |
19 | 1.78 | 290 | 29,580 | 321 | 32,742 |
20 | 1.95 | 318 | 32,436 | 352 | 35,904 |
21 | 2.15 | 349 | 35,598 | 387 | 39,474 |
22 | 2.37 | 385 | 39,270 | 426 | 43,452 |
23 | 2.56 | 416 | 42,432 | 461 | 47,022 |
24 | 2.81 | 457 | 46,601 | 506 | 51,612 |
25 | 3.1 | 504 | 51,510 | 558 | 56,916 |
26 | 3.3 | 537 | 54,774 | 595 | 60,690 |
28 | 3.8 | 618 | 63,036 | 685 | 69,870 |
29 | 4.1 | 667 | 68,034 | 738 | 75,276 |
30 | 4.45 | 724 | 73,848 | 802 | 81,804 |
32 | 4.96 | 806 | 82,212 | 892 | 90,984 |
