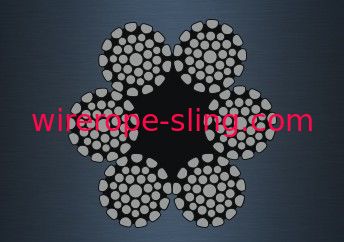

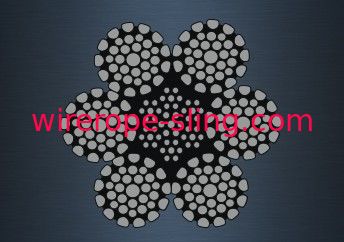

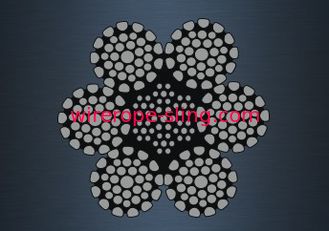

Dimensional Stability Galvanized Wire Rope Long Fatigue Life For Luffing Ropes
Dimensional Stability Galvanized Wire Rope Long Fatigue Life For Luffing Ropes Dimensional Stability Galvanized Wire Rope Long Fatigue Life For Luffing Ropes

Dimensional Stability Galvanized Wire Rope Long Fatigue Life For Luffing Ropes

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6x36 (14/7+7/7/1) Compacted
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly
Contact Now

Detail Information
Material:SteelAlloy Or Not:Non-alloy
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
Standard:ASTM, BS, GB, JISSurface:Galvanized Or Ungalvanized
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description





6x36 (14/7+7/7/1) Compacted Galvanized Steel Wire Rope - Luffing ropes



Product Details



6x36 Compacted is a flexible general engineering wire rope readily available in galvanised, ungalvanised and marine grade stainless steel. The wire rope has an equal lay construction (warrington seale) and achieves a superior breaking load to the 6x19 construction range. The construction has been designed to give a flexible rope with a good fatigue life. A 6x36 wire rope is available with either FC (fibre core) or IWRC (independent wire rope core) and is used for a wide range of applications, examples of which are shown below:.





Applications



  • Holding and closing ropes for grab cranes
  • General engineering applications
  • Wire rope slings
  • Winch ropes
  • Crane ropes
  • Hoist rope
  • Wire rope rigging applications
  • Lifeboat falls
  • Luffing ropes
  • Pursing wires
  • Mooring ropes
  • Tow ropes



The Applications of Compacted Steel Wire Rope



Because Compacted Steel Wire Rope has high bearing capacity, wear resistance, corrosion resistance, fatigue resistance, long service life and so on, it is one of the most efficient steel varieties in our country. It is also the preferred steel rope variety for mine hoisting, for example, shaft hoisting, inclined shaft lifting and stepless rope tramway used in coal mine. Wire rope belt conveyor and so on, but mainly used for mine hoisting. According to the data, Compacted Steel Wire Rope is introduced for the coal mine inclined shaft lifting. In the contrast test, its service life is 60% to 300% higher than that of the same wire rope. Compacted Steel Wire Rope, in addition to mine hoisting, is also used in forestry, construction, fishery and other departments, such as the main cable of forestry ropeway, construction machinery rolling and dragging rope, fish ship dragging rope, etc., also can be used in elevator, electric power line construction, and so on, application scope and wide application prospect.
Compacted Steel Wire Rope has experienced more than 20 years of development in our country, but there is still a lot of work to be done in the field of popularization and application. At present, Compacted Steel Wire Rope manufacturers are not widely popularized in the field of application of Compacted Steel Wire Rope.




Cross Section Show

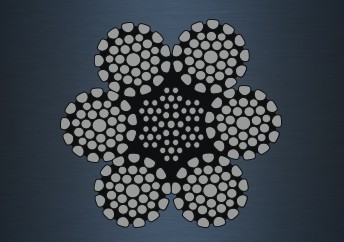

6x36 (14/7+7/7/1) Compacted- IWRC



Dimensional Stability Galvanized Wire Rope Long Fatigue Life For Luffing Ropes 0

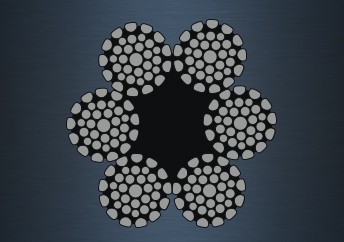

6x36 (14/7+7/7/1) Compacted - Fibre Core



Dimensional Stability Galvanized Wire Rope Long Fatigue Life For Luffing Ropes 1



.

6x36 (14/7+7/7/1) Compacted- IWRC Technical Table


Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
1770 Mpa 1960 Mpa 2160 Mpa
[mm] [kg/m] [kN] [kN] [kN]
12 0.683 112 124 131
13 0.792 131 147 157
14 0.930 153 169 183
15 1.06 176 194 208
16 1.19 198 219 237
18 1.52 250 277 298
19 1.68 275 305 329
20 1.85 307 340 368
22 2.26 370 410 441
24 2.74 447 492 540
25 2.93 481 532 576
26 3.14 520 581 622
28 3.68 604 663 722
30 4.21 689 763 831
32 4.75 777 861 949
34 5.45 891 980 1070
35 5.71 933 1033 1131
36 6.09 992 1099 1192





6x36 (14/7+7/7/1) Compacted - Fibre Core Technical Table





Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
1770 Mpa 1960 Mpa
[mm] [kg/m] [kN] [Kg] [kN] [Kg]
8 0.235 37.38 3,813 41.40 4,222
9 0.297 47.31 4,825 52.39 5,343
10 0.367 58.41 5,957 64.68 6,597
11 0.444 70.68 7,208 78.26 7,982
12 0.528 84.11 8,579 93.14 9,500
14 0.719 114.48 11,677 126.77 12,930
16 0.940 149.53 15,252 165.58 16,889
18 1.189 189.25 19,303 209.56 21,375
20 1.468 233.64 23,831 258.72 26,389
22 1.776 282.70 28,835 313.05 31,931
24 2.114 336.44 34,317 372.56 38,000
26 2.481 394.85 40,274 437.24 44,598
28 2.877 457.93 46,709 507.09 51,723
30 3.303 525.69 53,620 582.12 59,376
32 3.758 598.12 61,008 662.32 67,556
34 4.243 675.22 68,872 747.70 76,265
36 4.756 756.99 77,213 838.25 85,501
38 5.299 843.44 86,030 933.98 95,265
40 5.872 934.56 95,325 1034.88 105,557
42 6.474 1030.35 105,095 1140.96 116,377
44 7.105 1130.82 115,343 1252.20 127,724
46 7.766 1235.96 126,067 1368.63 139,600
48 8.456 1345.77 137,268 1490.23 152,003
50 9.175 1460.25 148,945 1617.00 164,934
52 9.924 1579.41 161,099 1748.95 178,392
56 11.509 1831.74 186,837 2028.36 206,893
60 13.212 2102.76 214,481 2328.48 237,504
