Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | LKS |
Certification: | CE, CCS, Lloyd’s, ABS,DNV |
Model Number: | 8 x K36WS EPIWRC |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1000mtrs |
Price: | USD1200 per Ton |
Packaging Details: | Wooden Reel or as request |
Delivery Time: | 10-15days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000tons monthly |
Detail Information |
|||
Length: | 500mtrs/1000mtrs/2000mtrs Available | Surface: | Galvanized |
---|---|---|---|
Service: | OEM/ODM | Tensile Strength: | 1570,1670,1770,1870,1960MPA |
Packing: | Wooden Reel,Steel Reel | Lay: | RHOL,LHOL,RHLL,LHLL |
Standard: | ASTM, BS, GB, JIS | Alloy Or Not: | Non-alloy |
High Light: |
galvanized cable wire,galvanized steel wire rope |
Product Description
Galvanised lang’s lay rope used for marine riser tensioners. The strong point of this rope is its excellent performance under extreme bending fatigue loads. SUPERFILL® compaction technology ensures highest breaking forces and thus maximum safety levels during operation. The application of this technology — even in the core — gives this rope optimum dimensional stability to lateral pressure and high bending fatigue life.
.
Marine Riser Tensioners
Relationship between structure and properties of steel wire rope (wear resistance and fatigue resistance)
Relationship between structure and softness, wear resistance and fatigue property of wire rope
Generally speaking, the thicker the steel wire is, the better the wear resistance; the thinner the steel wire, the higher the fatigue resistance.
Therefore, the inclined shaft hoisting in mine wire rope mostly uses the wear resistant 6*7 and 6*19S structure. Tower crane and truck crane are frequently lifting and 35W*7 structure is chosen.
Wire Rope Construction | Wire Rope Flexible | Wire Rope wear resistance | Wire Rope fatigue |
6×7 | ●●●●● | ●●●●● | ● |
6×19 | ●●● | ●●● | ●● |
6×37 | ● | ●● | ●●● |
6×19W | ●●● | ●●● | ●●● |
6×19S | ●●● | ●●●● | ●●● |
6×25Fi | ●●● | ●●● | ●●●● |
6×29Fi | ●●● | ●●● | ●●●● |
6×31WS | ●●● | ●●● | ●●●● |
6×36WS | ●●● | ●●● | ●●●● |
6×41WS | ●● | ●●● | ●●●● |
6×K36WS | ●●●● | ●●●● | ●●●● |
8×19S | ●● | ●●● | ●●● |
18×7 | ●● | ●●● | ●●● |
18×19S | ● | ●● | ●●●●● |
35W×7 | ● | ●●● | ●●●●● |
35W×K7 | ●●● | ●●●●● | ●●●●● |

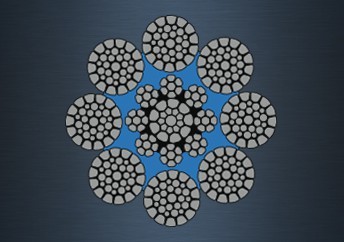

Cross Section Show
.
Breaking Loads | |||||||
---|---|---|---|---|---|---|---|
Nominal Diameter | Weight | Minimum Breaking Loads | |||||
1770 Mpa | 1960 Mpa | 2160 Mpa | |||||
[mm] | [kg/m] | [kN] | [Kg] | [kN] | [Kg] | [kN] | [Kg] |
7 | 0.23 | 36 | 3,671 | 40 | 4,079 | 43 | 4,385 |
8 | 0.30 | 49 | 4,997 | 53 | 5,404 | 56 | 5,710 |
9 | 0.38 | 60 | 6,118 | 67 | 6,832 | 71 | 7,240 |
10 | 0.48 | 74 | 7,546 | 82 | 8,362 | 87 | 8,872 |
11 | 0.56 | 90 | 9,177 | 100 | 10,197 | 106 | 10,809 |
12 | 0.67 | 108 | 11,013 | 118 | 12,033 | 126 | 12,848 |
13 | 0.78 | 126 | 12,848 | 140 | 14,276 | 148 | 15,092 |
14 | 0.89 | 146 | 14,888 | 162 | 16,519 | 172 | 17,539 |
15 | 1.04 | 168 | 17,131 | 186 | 18,967 | 197 | 20,088 |
16 | 1.16 | 191 | 19,477 | 211 | 21,516 | 224 | 22,842 |
17 | 1.32 | 215 | 21,924 | 239 | 24,371 | 253 | 25,799 |
18 | 1.49 | 241 | 24,575 | 267 | 27,226 | 284 | 28,960 |
19 | 1.64 | 269 | 27,430 | 298 | 30,388 | 316 | 32,223 |
20 | 1.82 | 298 | 30,388 | 330 | 33,651 | 350 | 35,690 |
21 | 2.01 | 328 | 33,447 | 364 | 37,118 | 386 | 39,361 |
22 | 2.20 | 360 | 36,710 | 399 | 40,687 | 423 | 43,134 |
23 | 2.40 | 394 | 40,177 | 436 | 44,460 | 463 | 47,213 |
24 | 2.61 | 429 | 43,746 | 475 | 48,437 | 504 | 51,394 |
