1/16 Inch X 66 Feet Marine Grade Stainless Steel Wire Rope

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-SSWR1.6-7X7
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD0.5-1.5PER SET
Packaging Details: Safety export wooden/plastic reel/as the requirement of customer.
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/week

Detail Information

Type:Galvanized,steel Wire Rope,cable Suspending KitsSteel Grade:Carbon Steel 45# 60# 70#,Low Carbon Steel
Alloy Or Not:Non-alloyApplication:Rope,Construction,Manufacturing,vineyard,clothline
Wire Gauge:1.0mm-8mmStandard:GB,ASTM,DIN,AISI,BS
Special Use:Free Cutting SteelTensile Strength:1570Mpa-1960Mpa
Material:45# /60#/70# High Carbon Steel,Stainless Steel 316/304 Or CarbonTwist Direction:RHRL,RHLL,LHRL,LHLL
High Light:

wire rope cable

,

steel rope cable

Product Description

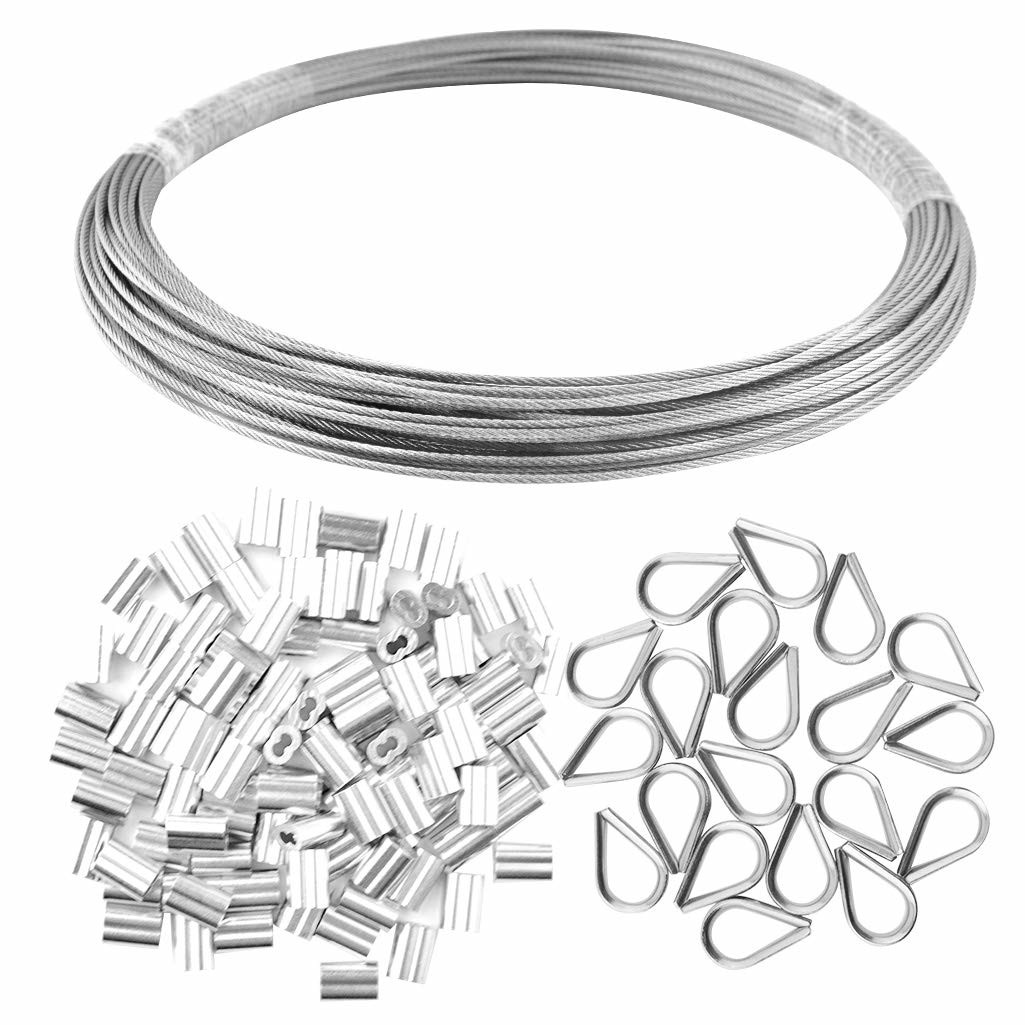

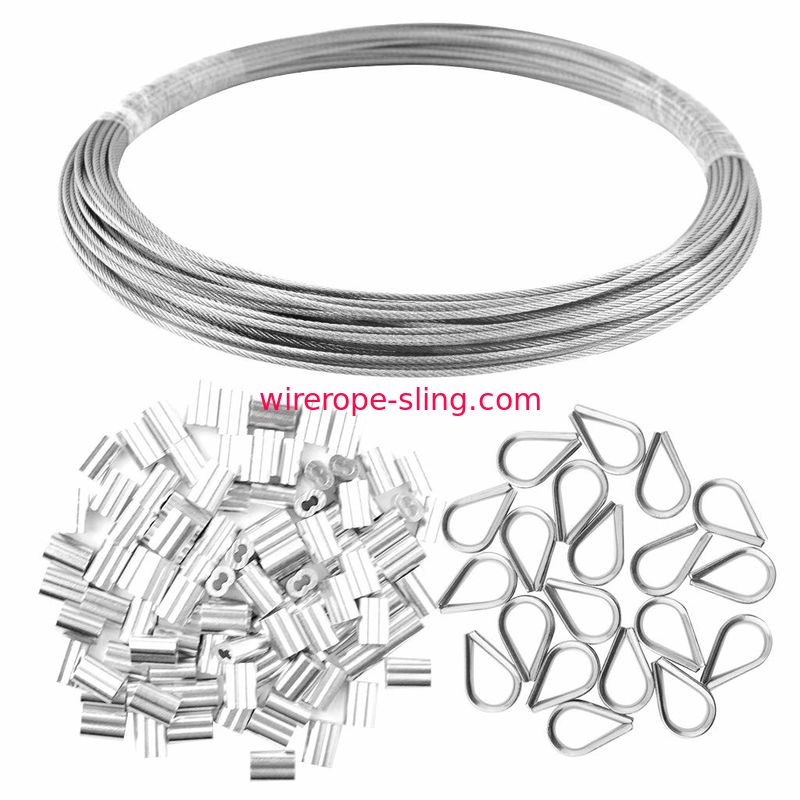

1/16inch x 66Feet Stainless Steel Wire Rope Cable 100Pcs Aluminum Crimping Sleeves and 20Pcs Thimble Cable Railing Kits



Product description

Size:1/16inch

Cable Railing Kits

Package includes:

1/16 inch 66 feet stainless steel wire rope cable
100 pieces aluminum crimping sleeves
20 pieces stainless steel thimble.

Material: stainless steel.
Color: silver.

Size:

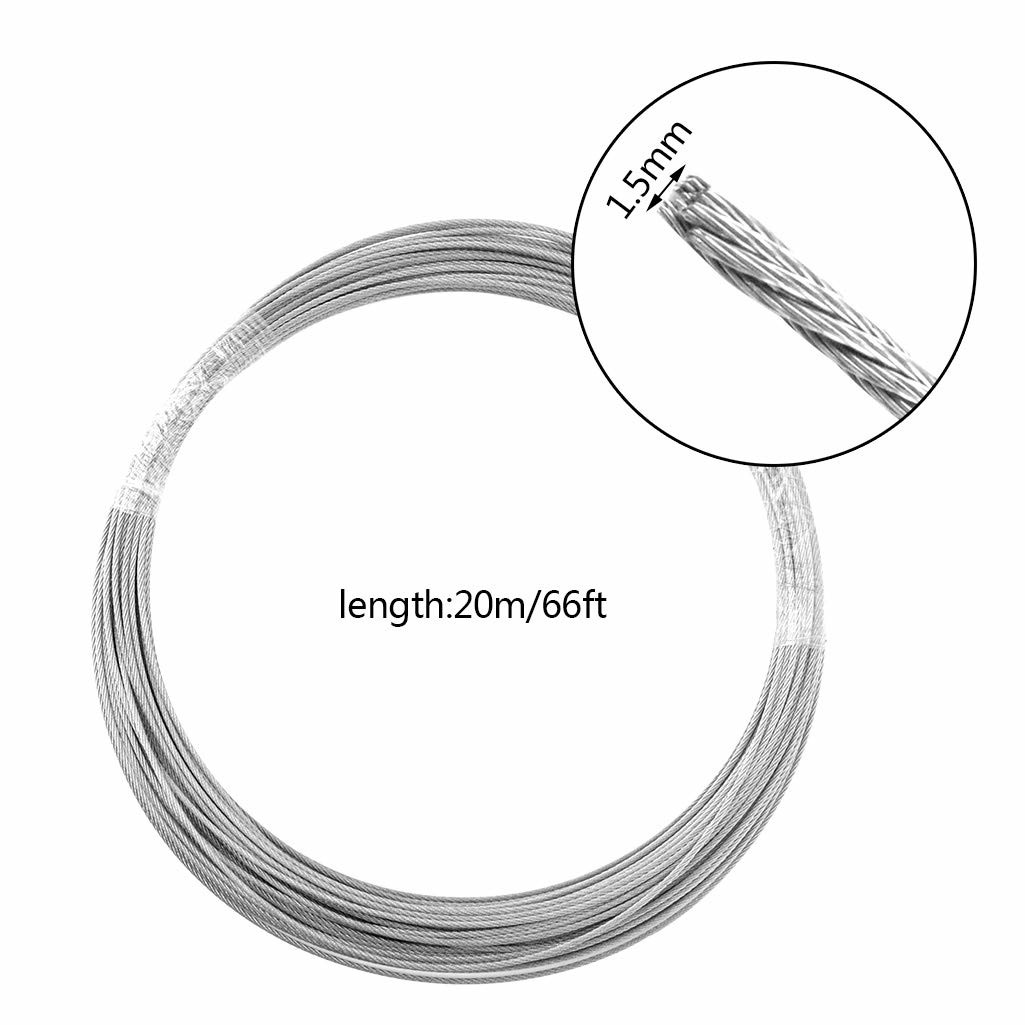

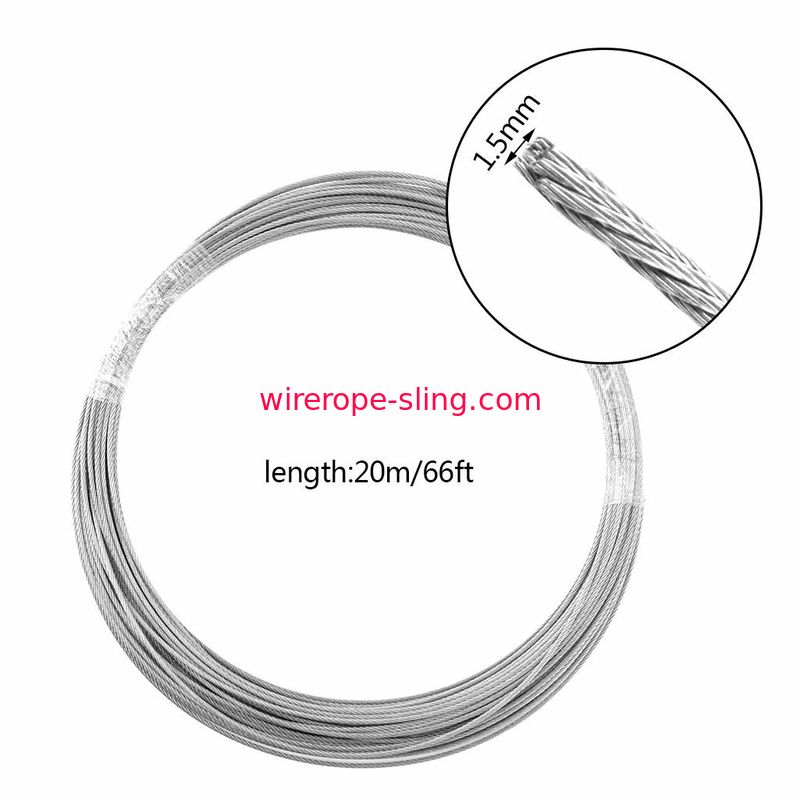

Wire rope cable: 1/16 inch in diameter and 66 feet in length.

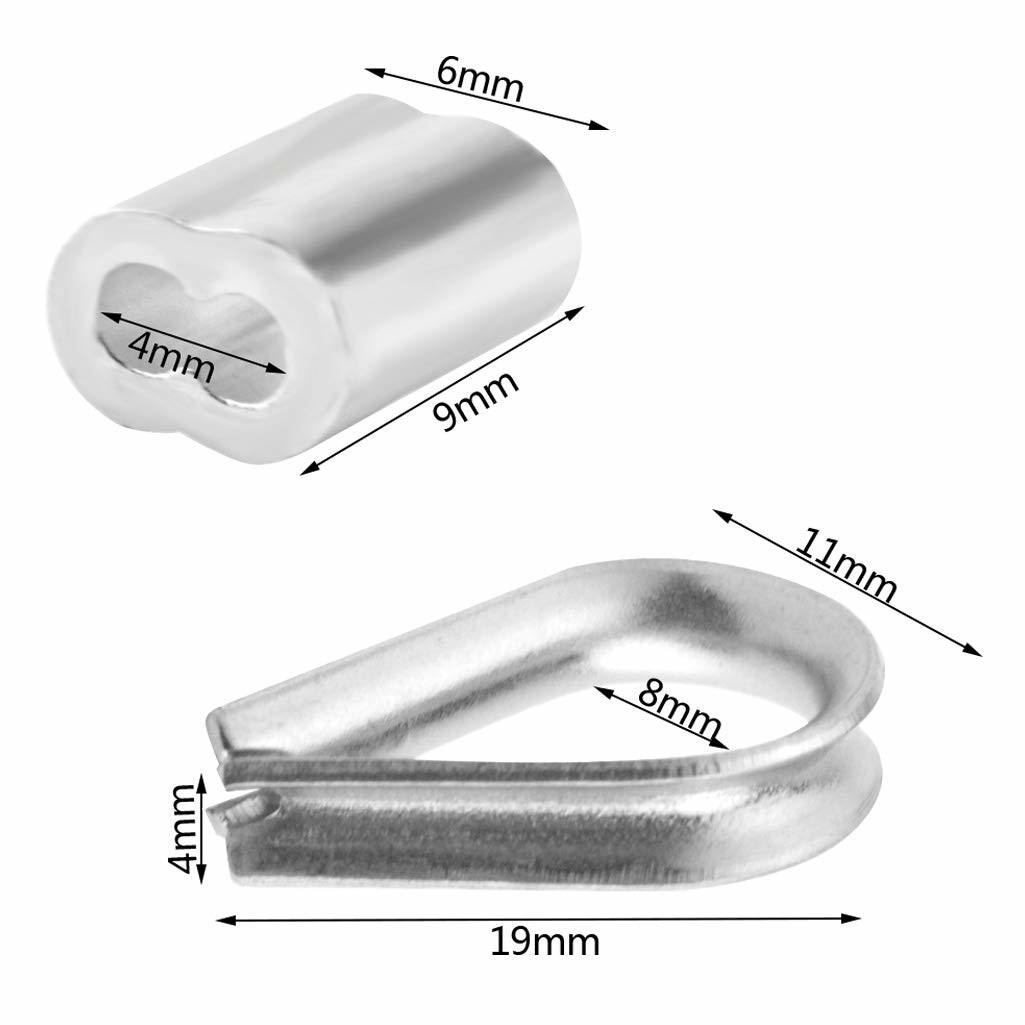

Crimping loop sleeve and thimble are fit for 1/16 inch diameter wire rope cable.

Used for:

Making cable balustrade system, homemade balustrade, outdoor sunshade, garden hanging lamp, gardening buoy, clothesline and other railings crafts.



1/16 Inch X 66 Feet Marine Grade Stainless Steel Wire Rope 0



1/16inch
Product Specifications
Specification for this product family
1/16 Inch X 66 Feet Marine Grade Stainless Steel Wire Rope 1
  • PACKAGE INCLUDING: 1/16 inch 66 feet stainless steel wire rope cable, 100 pieces aluminum crimping sleeves and 20 pieces stainless steel thimble. Very suitable for cable railing system.
  • HIGH QUALITY MATERIAL: Cable railing kits are made of high quality stainless steel, corrosion resistance, with maximum durability and strength. Wire rope cable is 1/16 inch in diameter and 66 feet in length.
  • CRIMPING SLEEVES AND THIMBLE: Applicable to 1/16 inch diameter wire rope cable, with vise, pliers, press to lock both ends of the wire, can firmly fix both ends of the cable, strong and durable.
  • WIDELY USED: Wire rope cable is widely used for making cable balustrade system, homemade balustrade, outdoor sunshade, garden hanging lamp, gardening buoy, clothesline and other railings crafts.
  • PROTECTION DESIGN:Wire rope cable can be tailored freely according to the length of use. Crimping sleeves and thimble can help prevent the cable from flattening around the hole and increase the service time of the cable.



1/16 Inch X 66 Feet Marine Grade Stainless Steel Wire Rope 2



Stainless Wire Rope Technical Table

Product Name Stainless Wire Rope
Grade 316
Construction 7x7
Diameter 1.6mm
Lay Right Hand Regular Lay or Right Hand Ordianry Lay
Finish Bright
Tensile Strength 1570 N/mm2
Packing Hard Strong Plywood Reel
Length 2500 meters



Diameter Weight Nominal Tensile Strength N/mm2
1470 1570 1670 1770 1960
mm kg/100m Minimum Breaking Force kN
0.45 0.08 0.107 0.114 0.122 0.129 0.143
0.5 0.10 0.132 0.141 0.150 0.159 0.176
0.6 0.14 0.191 0.203 0.216 0.229 0.254
0.7 0.20 0.259 0.277 0.295 0.312 0.346
0.8 0.26 0.339 0.362 0.385 0.408 0.452
0.9 0.32 0.429 0.458 0.487 0.516 0.572
1 0.40 0.529 0.565 0.601 0.637 0.706
1.2 0.58 0.762 0.814 0.866 0.918 1.016
1.5 0.90 1.191 1.272 1.353 1.434 1.588
1.6 1.02 1.355 1.447 1.539 1.631 1.806
1.8 1.30 1.715 1.831 1.948 2.065 2.286
2 1.60 2.117 2.261 2.405 2.549 2.822
2.4 2.30 3.048 3.256 3.463 3.670 4.064
3 3.60 4.763 5.087 5.411 5.735 6.350
3.2 4.10 5.419 5.788 6.156 6.525 7.225
3.5 4.90 6.483 6.924 7.365 7.806 8.644
4 6.40 8.467 9.043 9.619 10.195 11.290
4.5 8.10 10.716 11.445 12.174 12.903 14.288
5 10.00 13.230 14.130 15.030 15.930 17.640
6 14.40 19.051 20.347 21.643 22.939 25.402
8 25.60 33.869 36.173 38.477 40.781 45.158
10 40.00 52.920 56.520 60.120 63.720 70.560
12 57.60 76.205 81.389 86.573 91.757 101.606
