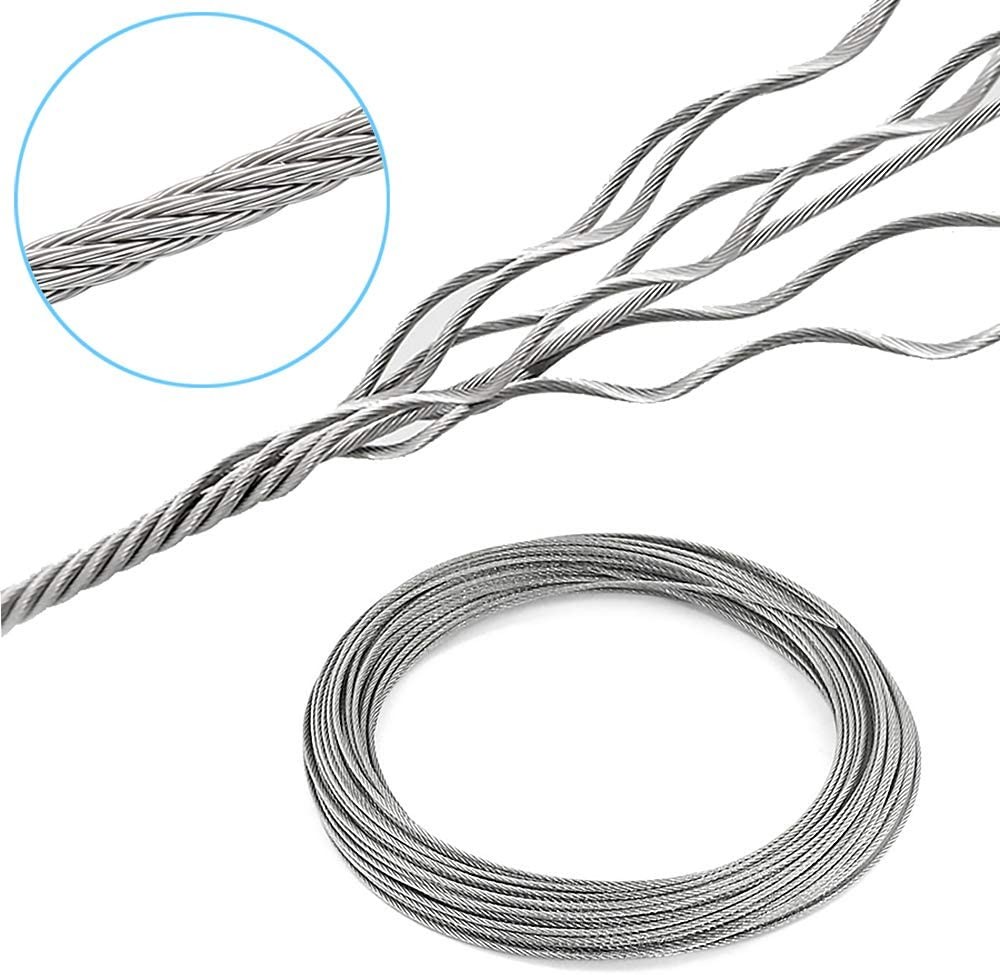

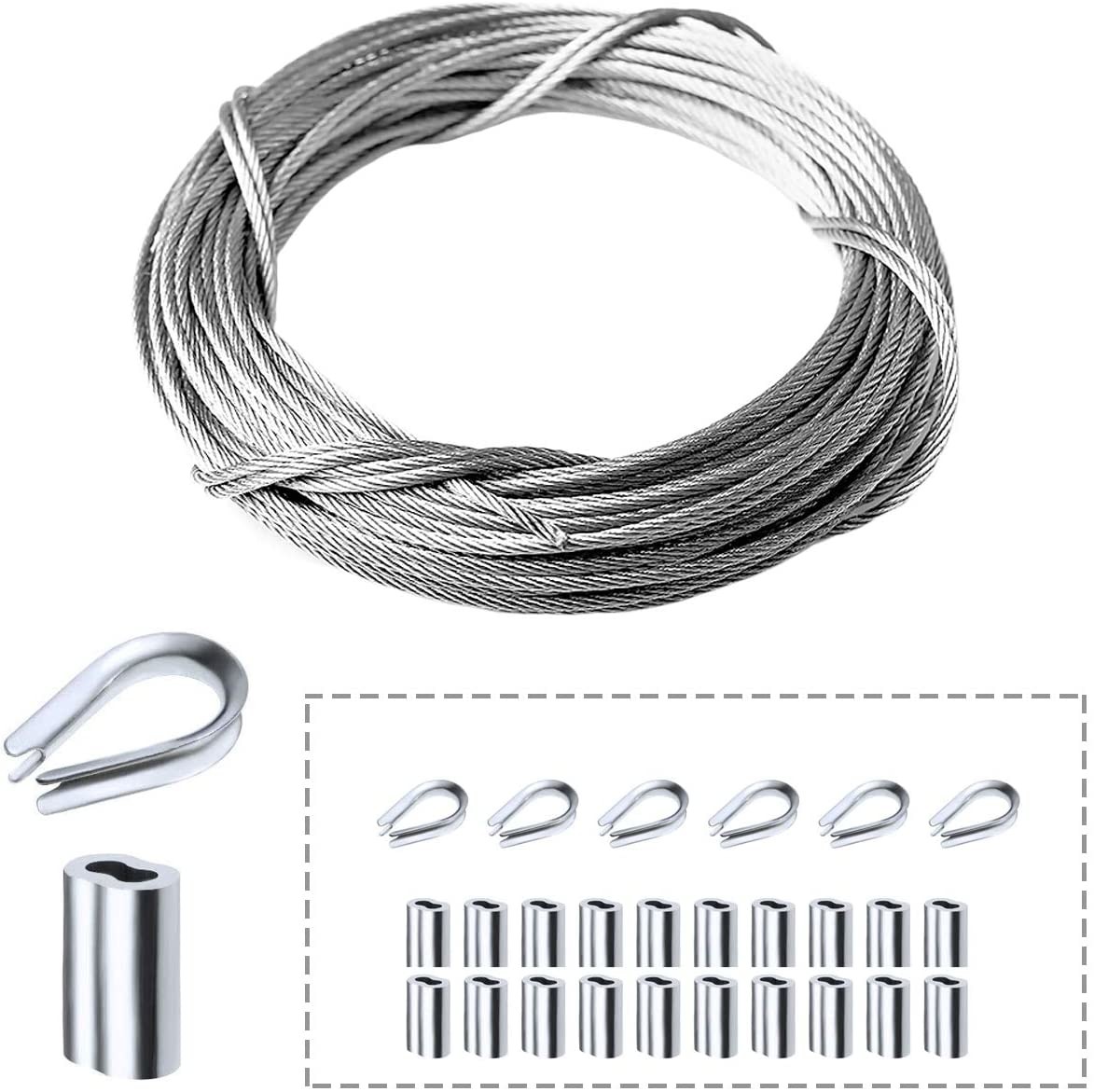

316 Marine Grade Railing Kit Aircraft 2mm Stainless Steel Wire Rope

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-SSWR1.6-7X7
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD0.5-1.5PER SET
Packaging Details: Safety export wooden/plastic reel/as the requirement of customer.
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/week

Detail Information

Type:Stainless Steel,steel Wire Rope,cable Suspending KitsSteel Grade:Carbon Steel 45# 60# 70#,Low Carbon Steel
Alloy Or Not:Non-alloyApplication:Rope,Construction,Manufacturing,vineyard,clothline
Wire Gauge:1.0mm-8mmStandard:GB,ASTM,DIN,AISI,BS
Special Use:Free Cutting SteelTensile Strength:1570Mpa-1960Mpa
Material:45# /60#/70# High Carbon Steel,Stainless Steel 316/304 Or CarbonTwist Direction:RHRL,RHLL,LHRL,LHLL
High Light:

wire rope cable

,

steel rope cable

Product Description

316 Marine Grade Cable,Stainless Steel Wire Rope, Railing Kit, Aircraft Wire Rope & Picture Hanging Kit for Railing





Stainless Steel Wire Roes for Marine & General Applications

Stainless steel wire ropes boast higher corrosion resistance to salt water than galvanized wire ropes, so they are the best choice of marine applications. Meanwhile, the bright appearance of galvanized wire ropes will dull over time, but stainless steel wire rope will maintain its bright and modern appearance for years. Therefore they are generally used in decoration for modern display and architectural purposes, such as railings, architectural cables, cable balustrades, handrails, etc.

316 Marine Grade Railing Kit Aircraft 2mm Stainless Steel Wire Rope 5

Stainless steel wire rope

Normally, stainless steel wire rope is made of 304, 305 or 316. And here is a simple comparison of these materials:

  • The 304 material, as the most common type, is magnetic with excellent corrosion resistance and strength compared with galvanized steel wire ropes. But it still will corrode to some extent over year so it is not suitable for marine and food applications.
  • The 305 material is more corrosive resistant than 304. Meanwhile, it is largely non-magnetic perfectly suited for aeronautical and naval fields.
  • The 316 materials is the most corrosive resistant type and highly used in high corrosion environments and places with high salt spray. But the 316 material is about 10% less strength than 304 stainless steel.

Construction:
Four main constructions of stainless steel wire ropes - 1 × 19, 7 × 7, 7 × 19, 6 × 36 FC/IWRC are available





Applications Cases



316 Marine Grade Railing Kit Aircraft 2mm Stainless Steel Wire Rope 6

316 Marine Grade Railing Kit Aircraft 2mm Stainless Steel Wire Rope 7









Stainless Wire Rope Specifications

Diameter Weight Nominal Tensile Strength   N/mm2
1470 1570 1670 1770 1960
mm kg/100m Minimum Breaking Force kN
0.45 0.08 0.107 0.114 0.122 0.129 0.143
0.5 0.10 0.132 0.141 0.150 0.159 0.176
0.6 0.14 0.191 0.203 0.216 0.229 0.254
0.7 0.20 0.259 0.277 0.295 0.312 0.346
0.8 0.26 0.339 0.362 0.385 0.408 0.452
0.9 0.32 0.429 0.458 0.487 0.516 0.572
1 0.40 0.529 0.565 0.601 0.637 0.706
1.2 0.58 0.762 0.814 0.866 0.918 1.016
1.5 0.90 1.191 1.272 1.353 1.434 1.588
1.6 1.02 1.355 1.447 1.539 1.631 1.806
1.8 1.30 1.715 1.831 1.948 2.065 2.286
2 1.60 2.117 2.261 2.405 2.549 2.822
2.4 2.30 3.048 3.256 3.463 3.670 4.064
3 3.60 4.763 5.087 5.411 5.735 6.350
3.2 4.10 5.419 5.788 6.156 6.525 7.225
3.5 4.90 6.483 6.924 7.365 7.806 8.644
4 6.40 8.467 9.043 9.619 10.195 11.290
4.5 8.10 10.716 11.445 12.174 12.903 14.288
5 10.00 13.230 14.130 15.030 15.930 17.640
6 14.40 19.051 20.347 21.643 22.939 25.402
8 25.60 33.869 36.173 38.477 40.781 45.158
10 40.00 52.920 56.520 60.120 63.720 70.560
12 57.60 76.205 81.389 86.573 91.757 101.606





Packaging & Shipping



wrapped with hard strong plywood spool , reel , bobbin . covered with waterproof paper and clear plastic to aovid water or dirt. 1000m/reel 1500m/reel 2000m/reel 2500m/reel 3000m/reel

 316 Marine Grade Railing Kit Aircraft 2mm Stainless Steel Wire Rope 8

316 Marine Grade Railing Kit Aircraft 2mm Stainless Steel Wire Rope 9
